RELAY BOX

id092100900300

Purpose

• Relays used by each system are grouped and housed together for smooth inspection and replacement servicing.

Function

• Relays used by each system are grouped and housed together.

Construction

• Installed the inside front bumper.

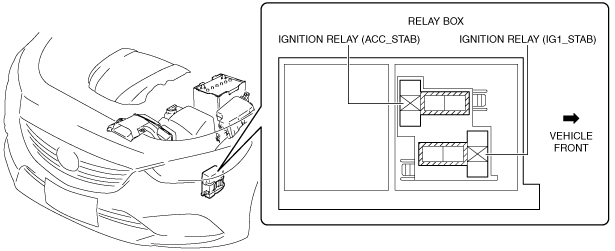

SKYACTIV-G 2.0,SKYACTIV-G 2.5

am6zzn00001797

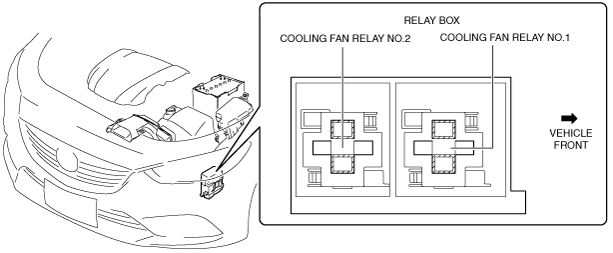

SKYACTIV-D 2.2

am6zzn00001798

Operation

Relay operation

1. When electric current flows to the coil, electromagnetic power is generated.

2. The switch is attracted by the generated electromagnetic power and switches on.

3. Electric current flows to each part downstream of the fuse.

ac5wzn00000285

Fail-safe

• Function not equipped.
