INSTRUMENT CLUSTER INSPECTION

id092200010600


Speedometer inspection


Using a speedometer tester

Caution
•  When only the front or the rear wheels are driven using a speedometer tester, the DSC HU/CM may determine that the vehicle speed signal is in error and the engine cannot be stopped by the normal operation. If the engine cannot be stopped, perform an emergency engine stop operation. (See SERVICE CAUTIONS.)

1.  Adjust the tire pressure to the specification.

2.  Using a speedometer tester, verify that the tester reading is as indicated in the following table.

European (L.H.D. U.K.), General (L.H.D. R.H.D.) specs., Australian specs.

Speedometer tester indication (km/h)

Allowable range (km/h)
20
20—26
40
40—46
60
61—67
80
81—87
100
102—108
120
122—130
140
142—151
160
163—171
180
183—182
200
204—212
220
224—233
240
244—254

U.K. specs.

Speedometer tester indication (mph)

Allowable range (mph)
10
10—14
20
20—24
30
30—34
40
40—44
50
51—55
60
61—65
70
71—76
80
81—87
90
91—97
100
102—107
110
112—117
120
122—128
130
132—138
140
142—148
150
153—159

General (L.H.D. R.H.D.) specs.

Speedometer tester indication (km/h)

Allowable range (km/h)
20
17—23
40
37—43
60
57—63
80
77—83
100
97—103
120
116—124
140
136—144
160
156—164
180
176—184
200
196—204
220
215—225
240
235—245

3.  Verify that the speedometer reading is within the range indicated in the table.

•  If the speedometer does not operate or the indication is not within the allowable range, inspect the DTC inspection for the following control module and the related wiring harnesses.
―  PCM
―  TCM (ATX)
―  DSC HU/CM
•  If the PCM, TCM (ATX), DSC HU/CM, and related wiring harnesses are normal, replace the instrument cluster.


Using the M-MDS

1.  Connect the M-MDS to the DLC-2.

2.  After vehicle identification, select the following from the M-MDS initialization screen.

(1)  “Data logger”
(2)  “Module”
(3)  “IC”

3.  Using “SPEEDOMTR”, verify that the displayed information is as indicated in the table.

European (L.H.D. U.K.), General (L.H.D. R.H.D.) specs., Australian specs.

M-MDS display
Speedometer display
60 km/h
Speedometer needle moves to approx. 61—67 km/h {38—42 mph}.
120 km/h
Speedometer needle moves to approx. 122—130 km/h {75—81 mph}.
Off
Speedometer needle moves to the bottommost position.

General (L.H.D. R.H.D.) specs.,

M-MDS display
Speedometer display
60 km/h
Speedometer needle moves to approx. 57—63 km/h {35—40 mph}.
120 km/h
Speedometer needle moves to approx. 116—124 km/h {72—77 mph}.
Off
Speedometer needle moves to the bottommost position.

•  If the speedometer does not operate or the indication is not within the allowable range, inspect the DTC inspection for the following control module and the related wiring harnesses.
―  PCM
―  TCM (ATX)
―  DSC HU/CM
•  If the PCM, TCM (ATX), DSC HU/CM, and related wiring harnesses are normal, replace the instrument cluster.


Tachometer inspection

Caution
•  If the engine speed exceeds the allowable range, the engine could be damaged. Therefore, when inspecting the tachometer, do not allow the engine speed to exceed the allowable range indicated on the tachometer.

1.  Connect the M-MDS to the DLC-2.

2.  After vehicle identification, select the following from the M-MDS initialization screen.

(1)  “Data logger”
(2)  “Module”
(3)  “IC”

3.  Using “TACHOMTR”, verify that the displayed information is as indicated in the table.

M-MDS display
Tachometer display
3000 RPM
Tachometer needle moves to approx. 3,050 rpm.
6000 RPM
Tachometer needle moves to approx. 6,100 rpm.
Off
Tachometer needle moves to bottommost position.

•  If the tachometer does not operate or the indication is not within the allowable range, inspect the DTC inspection for the following control module and the related wiring harnesses.
―  PCM
•  If the PCM and related wiring harnesses are normal, replace the instrument cluster.


LCD Inspection


Type A

1.  Connect the M-MDS to the DLC-2.

2.  After vehicle identification, select the following from the M-MDS initialization screen.

(1)  “Data logger”
(2)  “Module”
(3)  “IC”

3.  Using “LCD_SEG”, verify that the LCD is illuminated.

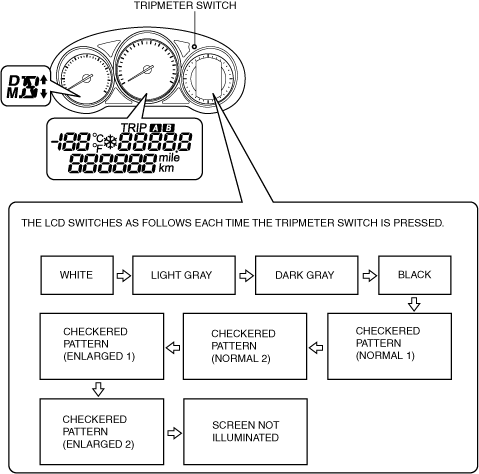

am6zzw00011543

•  If there are any non-illuminated area, replace the instrument cluster.


Type B

1.  Connect the M-MDS to the DLC-2.

2.  After vehicle identification, select the following from the M-MDS initialization screen.

(1)  “Data logger”
(2)  “Module”
(3)  “IC”

3.  Using “LCD_SEG”, verify that the LCD is illuminated.

•  If there are any non-illuminated area, replace the instrument cluster.

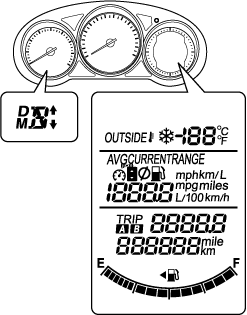

am6zzw00011544


Warning/Indicator Light Illumination Inspection

1.  Connect the M-MDS to the DLC-2.

2.  After vehicle identification, select the following from the M-MDS initialization screen.

(1)  “Data logger”
(2)  “Module”
(3)  “IC”

3.  Using “WL+IL”, verify that the warning/indicator lights in the following table are illuminated.

•  If any of the warning/indicator lights are not displayed, replace the instrument cluster.

Type A (with TFT LCD display)

am6zzw00011141

—: Not applicable

No

Warning/Indicator lights

Name

Comment
1
TCS/DSC indicator light
—
2
High beam control (HBC) system warning light (amber)/indicator light (green)
With HBC System
3
AFS OFF indicator light
With AFS
4
DSC OFF indicator light
—
5
i-stop warning light (amber)/indicator light (green)
With i-stop system
6
Front Fog Light Indicator Light
With front fog light
7
Check engine light
—
8
Cruise main indicator light (amber)/cruise set indicatorlight (green)
With cruise control system
Mazda radar cruise control (MRCC) warning light (amber)/indicatorlight (green)
With MRCC
9
Turn signal/hazard warning indicator lights
—
10
Master warning light
—
11
Low fuel warning light
—
12
Brake system warning light
—
13
Security indicator light
—
14
Glow indicator light
SKYACTIV-D 2.2
15
Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)
—
16
ABS warning light
—
17
Tire pressure monitoring system warning light
With TPMS
18
Seat belt warning light
—
19
Lane departure warning system (LDWS) warning light (amber)/indicator light (green)
With LDWS
20
Air bag/front seat belt pretensioner system warning light
—
21
Rear fog light indicator light
With rear fog light
22
Headlight high-beam indicator light
—
23
Lights-on indicator light
—
24
Shift position indicator/gear position indicator
ATX
Gear shift indicator
MTX (with gear shift indicator)
25
Rear vehicle monitoring (RVM) system warning light (amber)/indicator light (green)
With Rear Vehicle Monitoring (RVM) System
BSM OFF indicator light
With BSM

Type B (without TFT LCD display)

am6zzw00011143

—: Not applicable

No.

Warning/Indicator lights

Name

Comment
1
TCS/DSC indicator light
—
2
High beam control (HBC) system warning light (amber)/indicator light (green)
With High beam control (HBC) system
3
Engine oil warning light
—
4
Glow indicator light
SKYACTIV-D 2.2
5
Diesel particulate filter indicator light
SKYACTIV-D 2.2
6
KEY warning light (red)/indicator light (green)
—
7
Front fog light indicator light
With front fog light
8
Wrench indicator light
SKYACTIV-D 2.2
9
Check engine light
—
10
Turn signal/hazard warning indicator lights
—
11
Automatic transaxle warning light
ATX
12
Cruise main indicator light (amber)/cruise set indicator light (green)
With cruise control system
13
Lights-on indicator light
—
14
i-stop warning light (amber)/indicator light (green)
With i-stop system
15
Lane departure warning system (LDWS) warning light (amber)/indicator light (green)
With LDWS
16
Door-ajar warning light
—
17
Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)
—
18
Low fuel warning light
—
19
120 km/h warning light
With 120 km/h warning light
20
ABS warning light
—
21
Low washer fluid level warning light
With washer fluid-level sensor
22
AFS OFF indicator light
With AFS
23
Charging system warning light
—
24
Brake system warning light
—
25
Headlight high-beam indicator light
—
26
Seat belt warning light
—
27
Rear vehicle monitoring (RVM) system warning light (amber)/indicator light (green)
With Rear Vehicle Monitoring (RVM) System
BSM OFF indicator light
With BSM
28
Security indicator light
—
29
Tire pressure monitoring system warning light
With TPMS
30
Master warning light
—
31
Air bag/front seat belt pretensioner system warning light
—
32
Power steering malfunction indicator light
—
33
Rear fog light indicator light
With rear fog light
34
Shift position indicator/gear position indicator
ATX
Gear shift indicator
MTX (with gear shift indicator)
35
DSC OFF indicator light
—


Alarm Inspection

1.  Connect the M-MDS to the DLC-2.

2.  After vehicle identification, select the following from the M-MDS initialization screen.

(1)  “Data logger”
(2)  “Module”
(3)  “IC”

3.  Using “ALARM”, verify that the buzzer sounds.

•  If the buzzer does not sound, replace the instrument cluster.
