BLIND SPOT MONITORING (BSM) OFF SWITCH INSPECTION

id092200014200

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the BSM OFF switch. (See BLIND SPOT MONITORING (BSM) OFF SWITCH REMOVAL/INSTALLATION.)

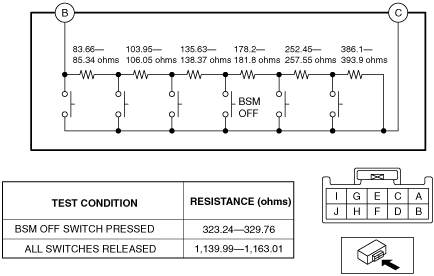

3.  Verify that the resistance between BSM OFF switches B and C is as indicated in the table.

ac5wzw00002949

•  If the resistance cannot be verified as indicated in the table, replace the cluster switch.

4.  Apply battery positive voltage to BSM OFF switch terminal J, and connect terminal I to ground.

ac5jjw00000654

5.  Verify that the LED illuminates.

•  If there is any malfunction, replace the cluster switch.
