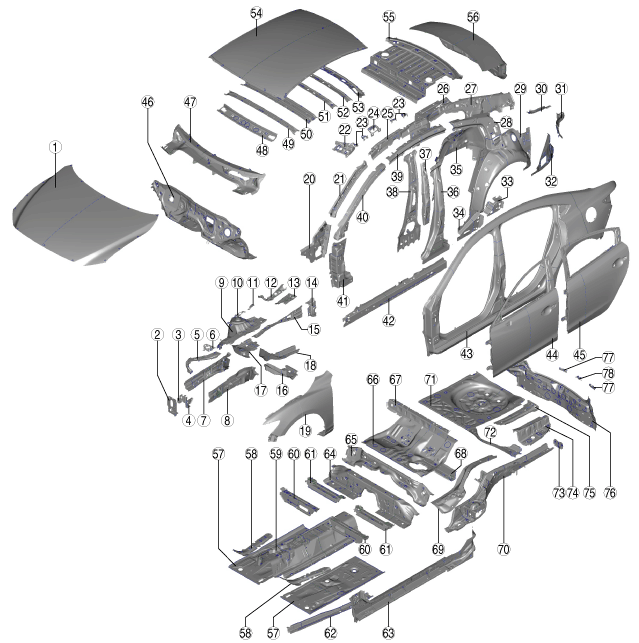

BODY COMPONENTS CONSTRUCTION [CONSTRUCTION]

id098007739700


4SD

am6zzb00000320

x:Applied
-:Not applied

No.

Part Name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet
-
X
X
0.70
{0.03}
2
Bumper bracket
X
-
X
2.60
{0.10}
3
Suspension mounting reinforcement
-
X
X
2.90
{0.11}
4
Outer frame reinforcement
-
X
X
2.00
{0.0787}
5
Shroud side member component
Apron reinforcement (lower)
-
X
X
1.00
{0.0394}
Side stay
-
-
X
1.20
{0.0472}
Shroud side panel
-
X
X
0.90
{0.035}
6
Shroud upper reinforcement
-
-
X
0.80
{0.031)
7
Front side frame (inner)
Front
-
X
X
1.40
{0.0551}
Rear
X
-
X
1.60
{0.0630}
8
Front side frame (outer)
Front
-
X
X
1.40
{0.0551}
Rear
X
-
X
1.60
{0.0630}
9
Wheel apron component
Suspension housing (upper)
-
X
X
2.30
{0.091}
Apron reinforcement
-
X
X
1.20
{0.0472}
Apron reinforcement No.3
X
-
X
1.40
{0.0551}
Cowl side reinforcement (inner)
-
X
X
1.00
{0.0394}
Suspension housing (lower)
-
-
X
1.00
{0.0394}
10
Front wheel apron panel
-
-
X
0.80
{0.031}
11
Front fender junction
-
-
X
0.80
{0.031}
12
Wiper bracket
-
X
X
1.40
{0.0551}
13
Cowl plate (upper)
-
X
X
1.40
{0.0551}
14
Cowl side reinforcement (upper)
-
X
X
1.60
{0.0630}
15
Cowl side reinforcement (lower)
Front
-
X
X
0.80
{0.031}
Rear
X
-
X
1.20
{0.0472}
16
Torque box
-
X
X
1.80
{0.0709}
17
Side member
-
-
X
1.40
{0.0551}
18
Front frame (rear)
X
-
X
2.00
{0.0787}
19
Front fender panel
-
-
X
0.70
{0.028}
20
Hinge pillar (inner)
X
-
X
1.20
{0.0472}
21
Front pillar (inner)
X
-
-
1.60
{0.0630}
22
Front pillar upper reinforcement
-
-
-
0.70
{0.028}
23
Nut plate
-
-
-
1.20
{0.0472}
24
Roof corner gusset
X
-
-
1.20
{0.0472}
25
Roof rail (inner)
X
-
-
1.20
{0.0472}
26
Package gusset component
Package junction
-
-
-
0.90
{0.035}
Package reinforcement
-
-
-
0.90
{0.035}
Package gusset
-
-
-
1.00
{0.0394}
Wheel housing gusset
-
-
-
1.00
{0.0394}
27
Rear pillar (inner)
-
-
-
0.65
{0.026}
28
Suspension housing reinforcement component
C pillar reinforcement
X
-
-
1.40
{0.0551}
Suspension housing reinforcement
-
-
-
0.65
{0.026}
29
Wheel housing (outer)
-
-
X
0.65
{0.026}
30
Rear fender rain rail
-
-
X
0.70
{0.028}
31
Corner plate
-
-
X
0.70
{0.028}
32
Rear fender panel (lower)
-
-
X
0.70
{0.028}
33
Tower anchor reinforcement
X
-
-
1.60
{0.0630}
34
Side sill reinforcement (rear)
X
-
X
1.80
{0.0709}
35
Wheel housing (inner)
-
-
X
0.70
{0.028}
36
Center pillar reinforcement
Upper
X
-
-
2.00
{0.0787}
Lower
X
-
-
2.00
{0.0787}
37
Center pillar reinforcement (inner)
X
-
-
2.30
{0.0906}
38
Center pillar (inner)
-
X
X
1.20
{0.0472}
39
Roof rail reinforcement
X
-
-
1.40
{0.0551}
40
Front pillar reinforcement
Upper
X
-
-
1.60
{0.0630}
Lower
X
-
-
1.80
{0.0709}
41
Hinge reinforcement
X
-
X
1.40
{0.0551}
42
Side sill reinforcement
X
-
X
1.40
{0.0551}
43
Cabin side outer frame
-
-
X
0.70
{0.028}
44
Front door
Outer panel
-
X
X
0.70
{0.028}
Inner panel
-
-
X
0.65
{0.026}
45
Rear door
Outer panel
-
X
X
0.70
{0.028}
Inner panel
-
-
X
0.65
{0.026}
46
Dash lower component
Upper panel
-
-
X
0.80
{0.031}
Tunnel junction No.1
-
-
X
0.80
{0.031}
Front frame rear reinforcement
X
-
X
1.20
{0.0472}
Tunnel reinforcement
-
X
X
1.20
{0.0472}
47
Dash and cowl component
Cowl panel
-
-
X
0.60
{0.024}
Dash upper panel
-
-
X
0.90
{0.035}
48
Front header
-
-
X
0.70
{0.028}
49
Roof reinforcement No.1
-
-
-
0.55
{0.022}
50
Roof reinforcement No.2
X
-
-
1.00
{0.0394}
51
Roof reinforcement No.3
-
-
-
0.55
{0.022}
52
Roof reinforcement No.4
-
-
-
0.55
{0.022}
53
Rear header
-
-
-
0.75
{0.0310}
54
Roof panel
-
-
-
0.75
{0.0310}
55
Rear package tray
-
-
-
0.60
{0.024}
56
Cabin side outer frame
Outer
-
-
X
0.70
{0.028}
Inner
-
-
X
0.60
{0.024}
End
-
-
X
0.60
{0.024}
57
Front floor side panel
-
-
X
0.60
{0.024}
58
Floor reinforcement
Front
X
-
-
1.80
{0.0709}
Rear
-
X
-
1.00
{0.0394}
59
Tunnel reinforcement
X
-
X
0.90
{0.035}
60
Crossmember No.2
X
-
-
1.00
{0.0394}
61
Crossmember No.2.5
X
-
-
1.60
{0.0630}
62
Front B frame
Front
X
-
-
1.40
{0.0551}
Rear
X
-
-
1.00
{0.0394}
63
Side sill (inner)
Front
-
X
X
1.40
{0.0551}
Center
X
-
X
1.60
{0.0630}
Rear
X
-
X
1.20
{0.0472}
64
Crossmember No.3 (lower)
Center upper
X
-
X
1.40
{0.0551}
Side upper
X
-
X
1.60
{0.0630}
Center lower
-
X
X
0.80
{0.031}
Side lower
-
X
X
1.00
{0.0394}
65
Crossmember No.3 (upper)
-
-
X
0.60
{0.024}
66
Center floor panel
-
-
X
0.60
{0.024}
67
Rear floor front reinforcement
-
X
-
0.90
{0.035}
68
Crossmember No.4 (front)
-
-
X
0.90
{0.035}
69
Rear frame reinforcement
-
-
X
0.90
{0.035}
70
Rear side frame
Front
X
-
X
1.60
{0.0630}
Center
X
-
X
1.60
{0.0630}
Rear
X
-
X
1.40
{0.0551}
71
Trunk floor panel
-
-
X
0.60
{0.024}
72
Crossmember No.4 (rear)
-
-
X
0.90
{0.035}
73
Rear bumper bracket
X
-
X
2.00
{0.0787}
74
Floor side panel No.2
-
-
X
0.70
{0.028}
75
Floor side panel No.1
Front
X
-
X
1.20
{0.0472}
Rear (upper)
-
X
X
2.00
{0.0787}
Rear (lower)
X
-
X
1.60
{0.0630}
76
Rear end panel component
Rear end panel
-
-
X
0.60
{0.024}
Rear end member
-
-
X
0.70
{0.028}
77
Rear bumper reinforcement No.1
-
-
X
1.00
{0.0394}
78
Rear bumper reinforcement No.2
-
-
X
1.00
{0.0394}


WGN

am6zzb00000321

x:Applied
-:Not applied

No.

Part Name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet
-
X
X
0.70
{0.03}
2
Bumper bracket
X
-
X
2.60
{0.10}
3
Suspension mounting reinforcement
-
X
X
2.90
{0.11}
4
Outer frame reinforcement
-
X
X
2.00
{0.0787}
5
Shroud side member component
Apron reinforcement (lower)
-
X
X
1.00
{0.0394}
Side stay
-
-
X
1.20
{0.0472}
Shroud side panel
-
X
X
0.90
{0.035}
6
Shroud upper reinforcement
-
-
X
0.80
{0.031)
7
Front side frame (inner)
Front
-
X
X
1.40
{0.0551}
Rear
X
-
X
1.60
{0.0630}
8
Front side frame (outer)
Front
-
X
X
1.40
{0.0551}
Rear
X
-
X
1.60
{0.0630}
9
Wheel apron component
Suspension housing (upper)
-
X
X
2.30
{0.091}
Apron reinforcement
-
X
X
1.20
{0.0472}
Apron reinforcement No.3
X
-
X
1.40
{0.0551}
Cowl side reinforcement (inner)
-
X
X
1.00
{0.0394}
Suspension housing (lower)
-
-
X
1.00
{0.0394}
10
Front wheel apron panel
-
-
X
0.80
{0.031}
11
Front fender junction
-
-
X
0.80
{0.031}
12
Wiper bracket
-
X
X
1.40
{0.0551}
13
Cowl plate (upper)
-
X
X
1.40
{0.0551}
14
Cowl side reinforcement (upper)
-
X
X
1.60
{0.0630}
15
Cowl side reinforcement (lower)
Front
-
X
X
0.80
{0.031}
Rear
X
-
X
1.20
{0.0472}
16
Torque box
-
X
X
1.80
{0.0709}
17
Side member
-
-
X
1.40
{0.0551}
18
Front frame (rear)
X
-
X
2.00
{0.0787}
19
Front fender panel
-
-
X
0.70
{0.028}
20
Hinge pillar (inner)
X
-
X
1.20
{0.0472}
21
Front pillar (inner)
X
-
-
1.60
{0.0630}
22
Front pillar upper reinforcement
-
-
-
0.70
{0.028}
23
Nut plate
-
-
-
1.20
{0.0472}
24
Roof corner gusset
X
-
-
1.20
{0.0472}
25
Roof rail (inner)
X
-
-
1.20
{0.0472}
26
Rear pillar (inner) component
Roof rail (inner)
-
-
X
0.70
{0.028}
Rear pillar (inner)
-
-
-
0.65
{0.026}
Upper corner plate
-
-
-
1.80
{0.0709}
27
Suspension housing reinforcement component
C pillar reinforcement (upper)
X
-
-
1.20
{0.0472}
C pillar reinforcement (lower)
-
-
-
0.65
{0.026}
Suspension housing reinforcement
-
-
-
1.60
{0.0630}
28
Rear pillar (outer)
-
-
X
1.00
{0.0394}
29
Rear pillar reinforcement
-
-
-
1.00
{0.0394}
30
Corner junction
-
-
-
1.20
{0.0472}
31
Corner plate
-
-
X
0.70
{0.028}
32
Rear fender panel (lower)
-
-
X
0.70
{0.028}
33
Wheel housing (outer)
-
-
X
0.65
{0.026}
34
Tower anchor reinforcement
X
-
-
1.60
{0.0630}
35
Side sill reinforcement (rear)
X
-
X
1.80
{0.0709}
36
Wheel housing (inner)
-
-
X
0.70
{0.028}
37
Center pillar reinforcement
Upper
X
-
-
2.00
{0.0787}
Lower
X
-
-
2.00
{0.0787}
38
Center pillar reinforcement (inner)
X
-
-
2.30
{0.0906}
39
Center pillar (inner)
-
X
X
1.20
{0.0472}
40
Roof rail reinforcement
X
-
-
1.40
{0.0551}
41
Front pillar reinforcement
Upper
X
-
-
1.60
{0.0630}
Lower
X
-
-
1.80
{0.0709}
42
Hinge reinforcement
X
-
X
1.40
{0.0551}
43
Side sill reinforcement
X
-
X
1.40
{0.0551}
44
Cabin side outer frame
-
-
X
0.70
{0.028}
45
Front door
Outer panel
-
X
X
0.70
{0.028}
Inner panel
-
-
X
0.65
{0.026}
46
Rear door
Outer panel
-
X
X
0.70
{0.028}
Inner panel
-
-
X
0.65
{0.026}
47
Dash lower component
Upper panel
-
-
X
0.80
{0.031}
Tunnel junction No.1
-
-
X
0.80
{0.031}
Front frame rear reinforcement
X
-
X
1.20
{0.0472}
Tunnel reinforcement
-
X
X
1.20
{0.0472}
48
Dash and cowl component
Cowl panel
-
-
X
0.60
{0.024}
Dash upper panel
-
-
X
0.90
{0.035}
49
Front header
-
-
X
0.70
{0.028}
50
Roof reinforcement No.1
-
-
-
0.55
{0.022}
51
Roof reinforcement No.2
X
-
-
0.80
{0.031}
52
Roof reinforcement No.3
-
-
-
0.55
{0.022}
53
Roof reinforcement No.4
-
-
-
0.55
{0.022}
54
Roof reinforcement No.5
-
-
-
0.55
{0.022}
55
Rear header
-
-
X
0.70
{0.028}
56
Roof panel
-
-
-
0.75
{0.0310}
57
Liftgate
Outer panel
-
-
X
0.70
{0.028}
Inner panel
-
-
X
0.65
{0.026}
58
Front floor side panel
-
-
X
0.60
{0.024}
59
Floor reinforcement
Front
X
-
-
1.80
{0.0709}
Rear
-
X
-
1.00
{0.0394}
60
Tunnel reinforcement
X
-
X
0.90
{0.035}
61
Crossmember No.2
X
-
-
1.00
{0.0394}
62
Crossmember No.2.5
X
-
-
1.60
{0.0630}
63
Front B frame
Front
X
-
-
1.40
{0.0551}
Rear
X
-
-
1.00
{0.0394}
64
Side sill (inner)
Front
-
X
X
1.40
{0.0551}
Center
X
-
X
1.60
{0.0630}
Rear
X
-
X
1.20
{0.0472}
65
Crossmember No.3 (lower)
Center upper
X
-
X
1.40
{0.0551}
Side upper
X
-
X
1.60
{0.0630}
Center lower
-
X
X
0.80
{0.031}
Side lower
-
X
X
1.00
{0.0394}
66
Crossmember No.3 (upper)
-
-
X
0.60
{0.024}
67
Center floor panel
-
-
X
0.60
{0.024}
68
Rear floor front reinforcement
-
X
-
0.90
{0.035}
69
Crossmember No.4 (front)
-
-
X
0.90
{0.035}
70
Rear frame reinforcement
-
-
X
0.90
{0.035}
71
Rear side frame
Front
X
-
X
1.60
{0.0630}
Center
X
-
X
1.60
{0.0630}
Rear
X
-
X
1.40
{0.0551}
72
Trunk floor panel
-
-
X
0.60
{0.024}
73
Crossmember No.4 (rear)
-
-
X
0.90
{0.035}
74
Rear bumper bracket
X
-
X
2.00
{0.0787}
75
Floor side panel No.2
-
-
X
0.70
{0.028}
76
Floor side panel No.1
Front
X
-
X
1.20
{0.0472}
Rear (upper)
-
X
X
2.00
{0.0787}
Rear (lower)
X
-
X
1.60
{0.0630}
77
Rear end panel component
Rear end panel
-
-
X
1.00
{0.0394}
Rear end member
-
-
-
0.80
{0.031}
78
Rear bumper reinforcement No.1
-
-
X
1.00
{0.0394}
79
Rear bumper reinforcement No.2
-
-
X
1.00
{0.0394}
