TORQUE BOX INSTALLATION [PANEL REPLACEMENT]

id098008607200

Symbol Mark

am6zzb00000529

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes 23 locations (LH), 28 locations (RH) indicated by (B) shown in the figure for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

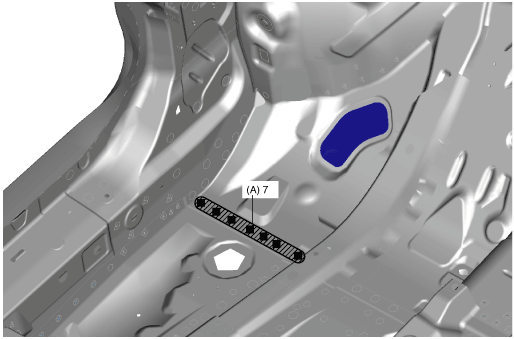

4.  Plug weld the 7 locations indicated by (A) from the room side shown in the figure.

am6zzb00000369

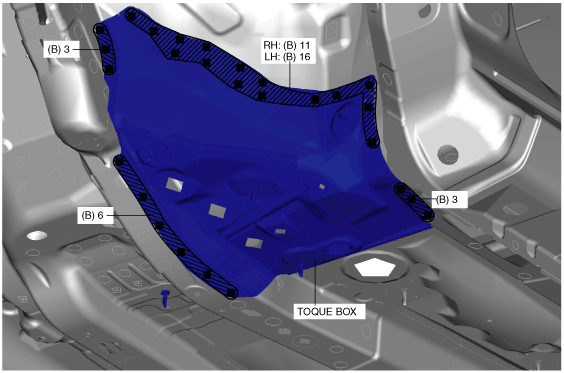

5.  Plug weld the 23 locations (LH), 28 locations (RH) by (B) shown in the figure, then install the toque box.

am6zzb00000370
