CORNER PLATE REMOVAL [PANEL REPLACEMENT]

id098008610400

Symbol Mark

am6zzb00000431

Removal Procedure

4SD

1.  Drill the 15 locations shown in the figure.

am6zzb00000432

2.  Remove the corner plate.

WGN

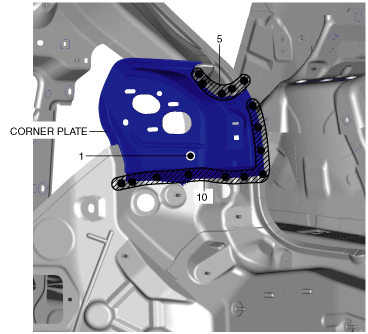

1.  Drill the 16 locations shown in the figure.

am6zzb00000433

2.  Remove the corner plate.
