SIDE SILL PANEL INSTALLATION [PANEL REPLACEMENT]

id098008615200

Symbol Mrak

am6zzb00000534

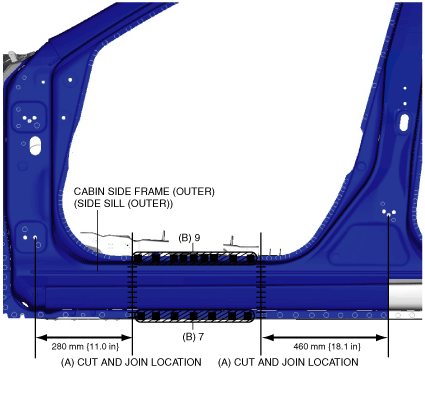

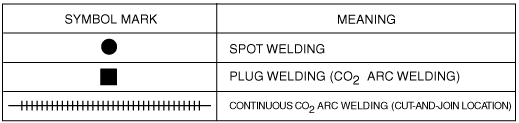

Installation Procedure

Side Sill (Front-side)

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Cut and join the locations indicated by (A) shown in the figure.

5.  Plug weld the 16 locations indicated by (B) shown in the figure, then install the cabin side frame (outer) (side sill (outer)).

am6zzb00000404

Side Sill (component)

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

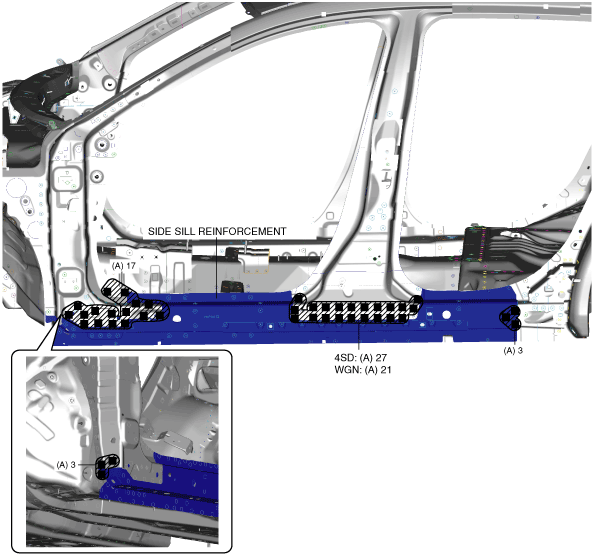

4.  Plug weld the 50 locations (4SD), 44 locations (WGN) indication by (A) shown in the figure, then install the side sill reinforcement.

am6zzb00000405

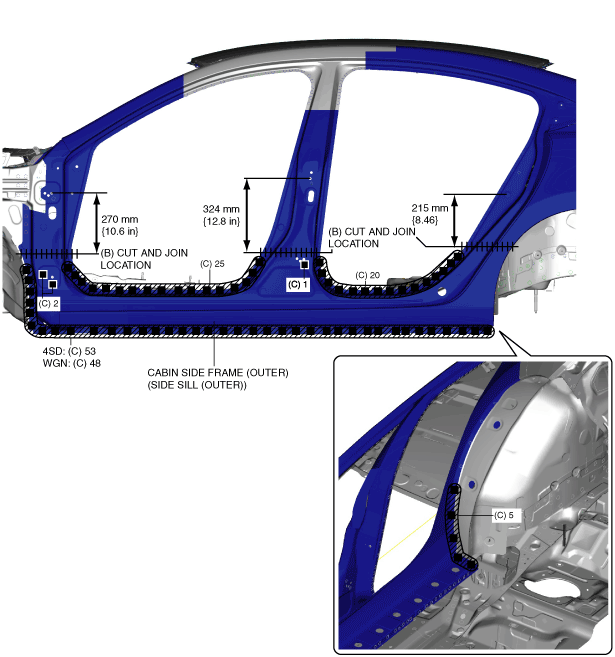

5.  Cut and join the 3 locations indicated by (B) shown in the figure.

6.  Plug weld the 106 locations (4SD), 101 locations (WGN) indicated by (C) shown in the figure, then install the cabin side frame (outer) (side sill (outer)).
