SIDE SILL PANEL REMOVAL [PANEL REPLACEMENT]

id098008615300

Symbol Mark

am6zzb00000407

Removal Procedure

Side Sill (Front-side)

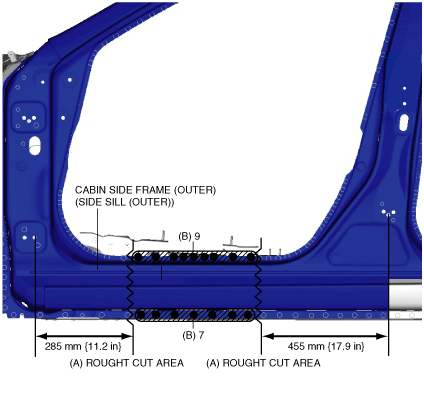

1.  Rough cut the 2 locations indicated by (A) shown in the figure.

2.  Drill the 16 locations indicated by (B) shown in the figure.

am6zzb00000408

3.  Remova the cabin side frame (outer) (side sill (outer)).

Side Sill (Component)

1.  Rough cut the 3 locations indicated by (A) shown in the figure.

2.  Drill the 106 locations (4SD), 101 locations (WGN) indicated by (B) shown in the figure, remove the cabin side frame (outer) (side sill (outer)).

am6zzb00000409

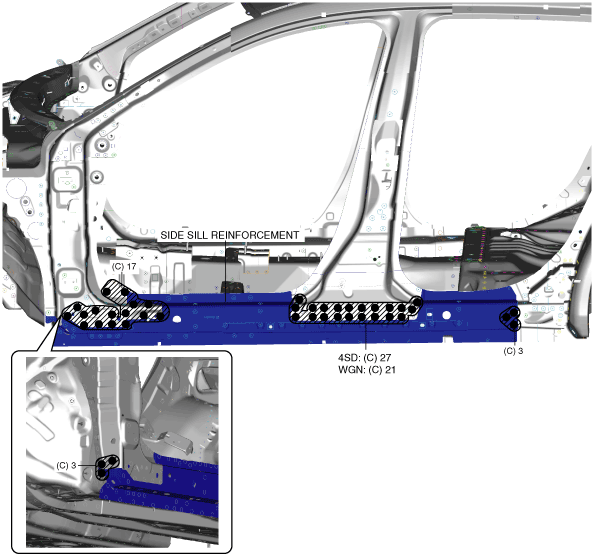

3.  Drill the 50 locations (4SD), 44 locations (WGN) indicated by (C) shown in the figure.

4.  Pull the side sill reinforcement from the side sill (inner), hinge reinforcement and center pillar reinforcement, and then remove it.
