FLOOR SIDE PANEL REMOVAL [PANEL REPLACEMENT]

id098008618700

Symbol Mark

am6zzb00000459

Removal Procedure

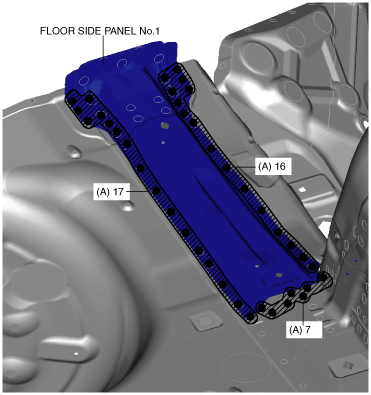

1.  Drill the 40 locations indicated by (A) shown in the figure, then remove the floor side panel No.1.

am6zzb00000460

2.  Drill the 11 locations (4SD), 12 locations (WGN) indicated by (B) shown in the figure.

3.  Drill the 7 locations indicated by (C) from the rear wheel housing side shown in the figure.

4SD

am6zzb00000461

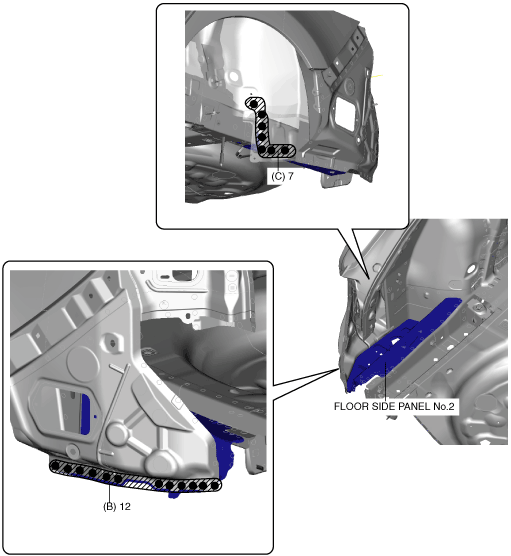

WGN

am6zzb00000462

4.  Remove the floor side panel No.2.
