FLOOR SIDE PANEL INSTALLATION [PANEL REPLACEMENT]

id098008618800

Symbol Mark

am6zzb00000540

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

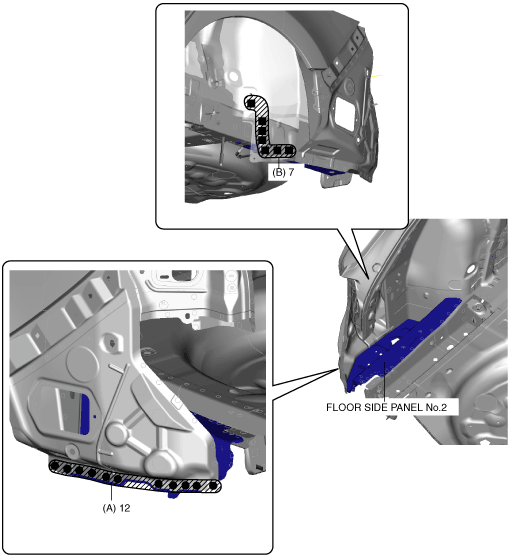

4.  Spot weld the 11 locations (4SD), 12 locations (WGN) indicated by (A) shown in the figure.

5.  Plug weld the 7 locations indicated by (B) shown in the figure, then install the floor side panel No.2.

4SD

am6zzb00000464

WGN

am6zzb00000465

6.  Plug weld the 40 locations indicated by (C) shown in the figure, then install the floor side panel No.1.

am6zzb00000466
