FRONT FRAME (REAR) REMOVAL [PANEL REPLACEMENT]

id098008742500

Symbol Mark

am6zzb00000375

Removal Procedure

1.  Drill the 26 locations shown in the figure.

Note

•  When drilling the 26 locations shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

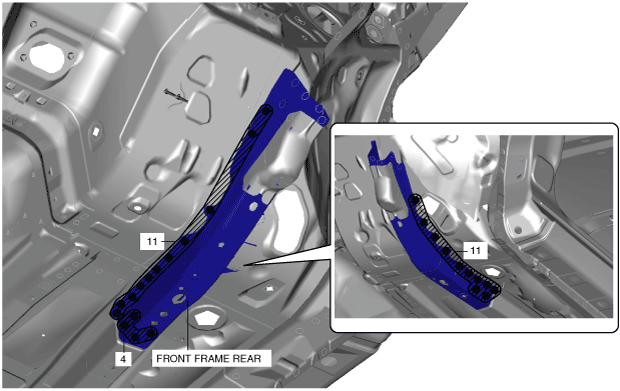

am6zzb00000376

2.  Remove the front frame (rear).
