REAR FENDER PANEL REMOVAL [PANEL REPLACEMENT]

id098008744900

Symbol Mark

am6zzb00000411

Removal Procedure

4SD

Caution

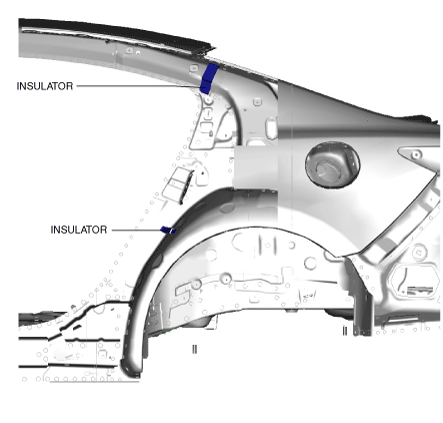

•  Avoid cutting with a blowtorch or similar tools as the insulator (shaded area) is flammable.

am6zzb00000412

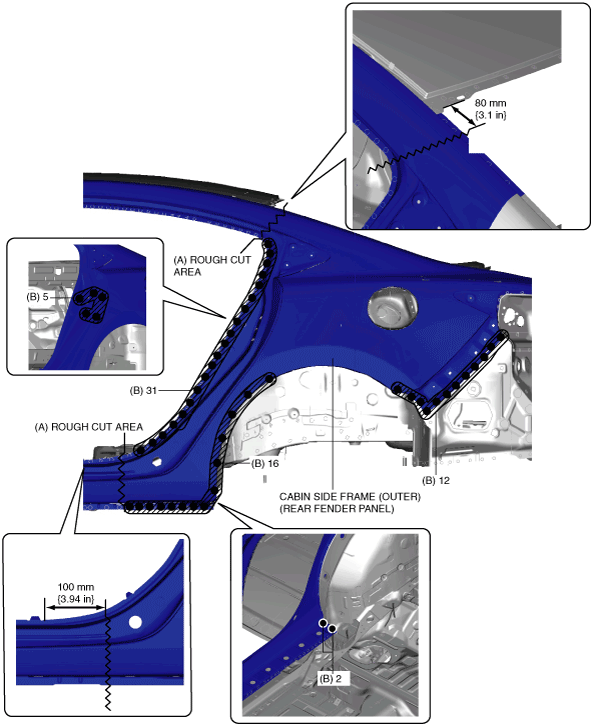

1.  Rough cut the 2 locations indicated by (A) shown in the figure.

2.  Drill the 66 locations indicated by (B) shown in the figure.

am6zzb00000413

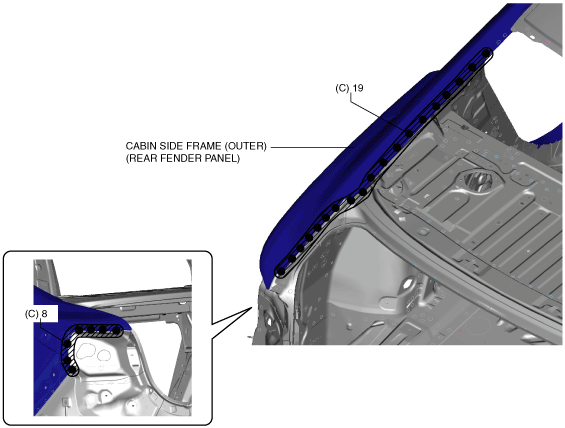

3.  Drill the 27 locations indicated by (C) shown in the figure.

am6zzb00000414

4.  Remove the cabin side frame (outer) (rear fender panel).

WGN

Caution

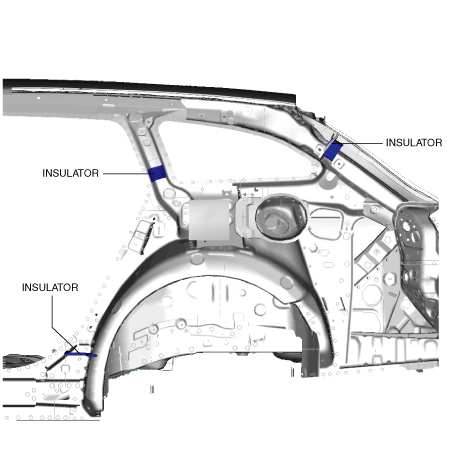

•  Avoid cutting with a blowtorch or similar tools as the insulator (shaded area) is flammable.

am6zzb00000415

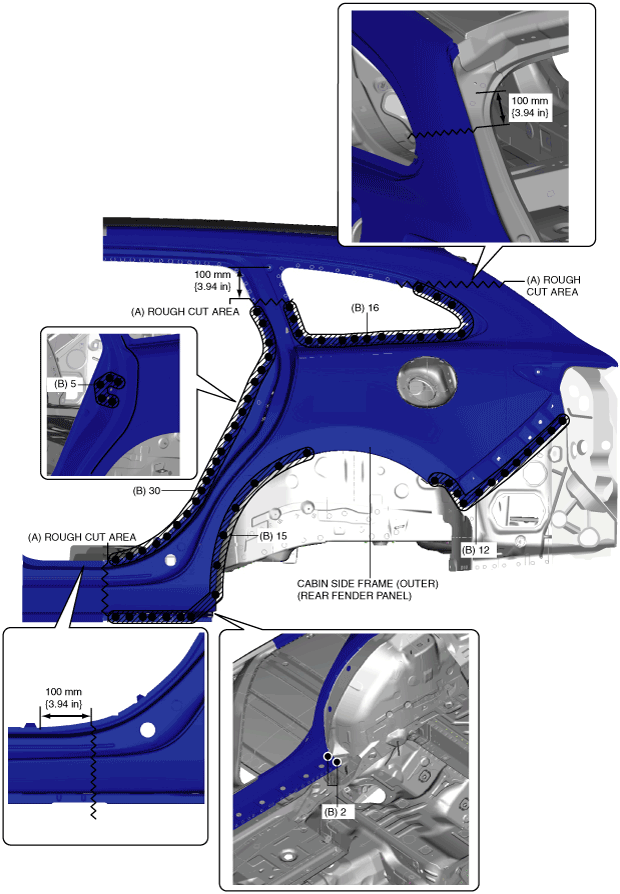

1.  Rough cut the 3 locations indicated by (A) shown in the figure.

2.  Drill the 80 locations indicated by (B) shown in the figure.

am6zzb00000416

3.  Drill the 16 locations indicated by (C) shown in the figure.

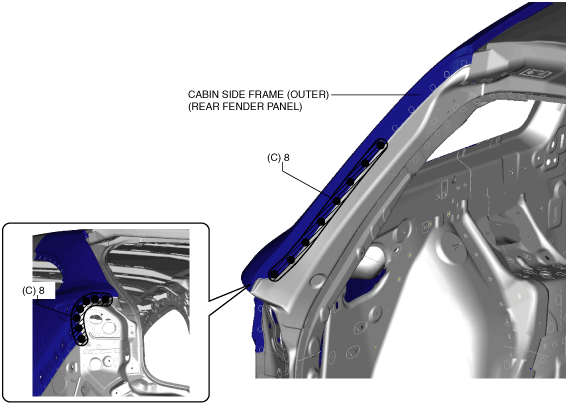

am6zzb00000417

4.  Remove the cabin side frame (outer) (rear fender panel).
