REAR PILLAR REINFORCEMENT INSTALLATION [PANEL REPLACEMENT]

id098008747400

Symbol Mark

am6zzb00000455

Removal Procedure

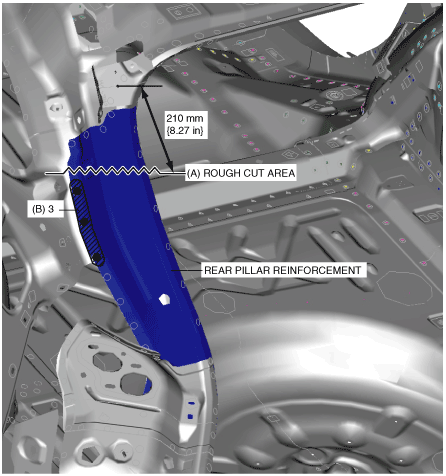

1.  Rough cut location indicated by (A) shown in the figure.

2.  Drill the 3 locations indicated by (B) shown in the figure.

am6zzb00000456

3.  Remove the rear pillar reinforcement.
