REAR SIDE FRAME REMOVAL [PANEL REPLACEMENT]

id098008801200

Symbol Mark

am6zzb00000472

Removal Procedure

1.  Drill the 40 locations indicated by (A) shown in the figure, then remove the floor side panel No.1.

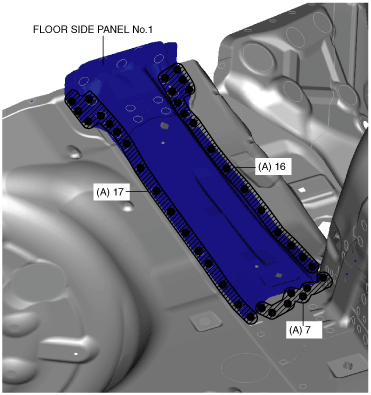

am6zzb00000473

2.  Rough cut the location indicated by (B) shown in the figure.

3.  Drill the 3 locations indicated by (C) shown in the figure, then remove the part of trunk floor panel (shaded arear).

am6zzb00000474

4.  Drill the 13 locations indicated by (D) shown in the figure.

am6zzb00000475

5.  Remove the rear side frame.
