PACKAGE TRAY REMOVAL [PANEL REPLACEMENT]

id098008819900

Symbol Mark

am6zzb00000431

Removal Procedure

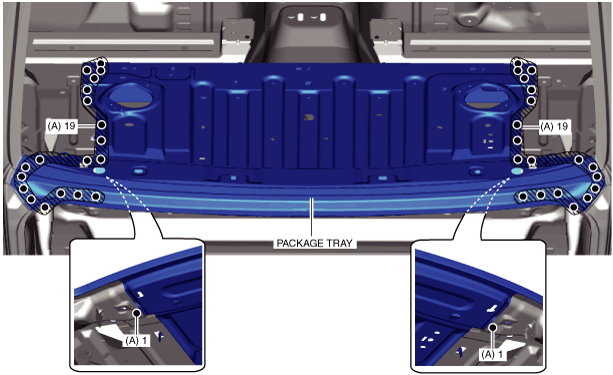

1.  Drill the 40 locations indicated by (A) shown in the figure.

am6zzb00000575

2.  Drill the 26 locations indicated by (B) from the room shown in the figure.

am6zzb00000576

3.  Remove the package tray.
