FRONT FENDER JUNCTION INSTALLATION [PANEL REPLACEMENT]

id098008828400

Symbol Mark

am6zzb00000525

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

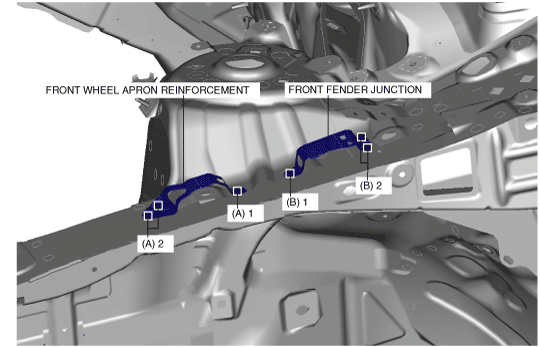

4.  Plug weld the 3 locations indicated by (A) shown in the figure, then install the front wheel apron reinforcement.

am6zzb00000348

5.  Plug weld the 3 locations indicated by (B) shown in the figure, then install the front fender junction.
