SHROUD SIDE MEMBER REMOVAL [PANEL REPLACEMENT]

id098008919000

Symbol Mark

am6zzb00000325

Removal Procedure

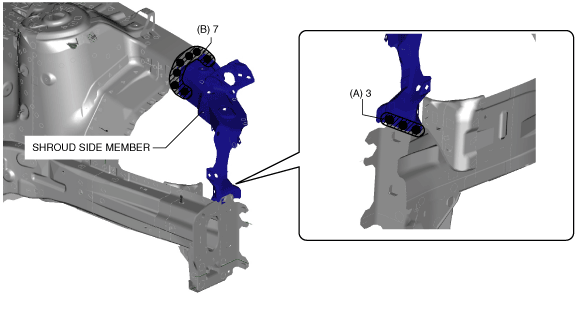

1.  Drill the 3 locations indicated by (A) shown in the figure.

aatjjb00000172

2.  Drill the 7 locations indicated by (B) shown in the figure.

3.  Remove the shroud side member.
