WIPER BRACKET INSTALLATION [PANEL REPLACEMENT]

id098008968900

Symbol Mark

am6zzb00000523

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

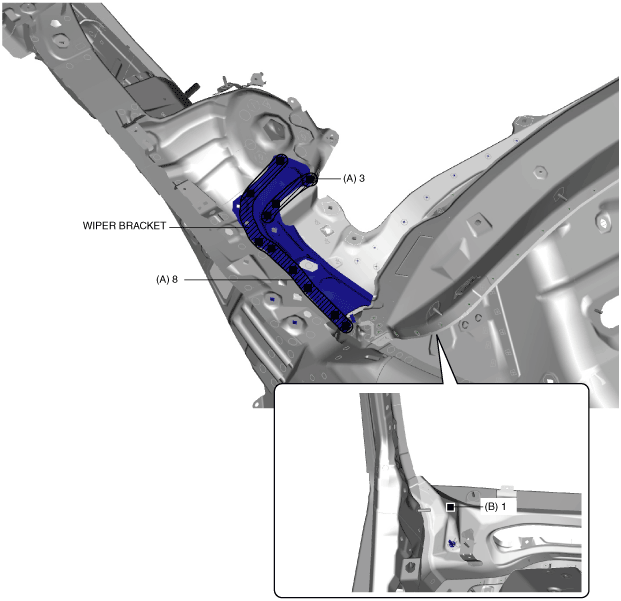

4.  Plug weld the 11 locations indicated by (A) shown in the figure.

am6zzb00000340

5.  Plug weld the 1 location indicated by (B) from the inside shown in the figure, then install the wiper bracket.
