REAR BODY DIMENSIONS [DIMENSIONS]
id098010990800
4SD

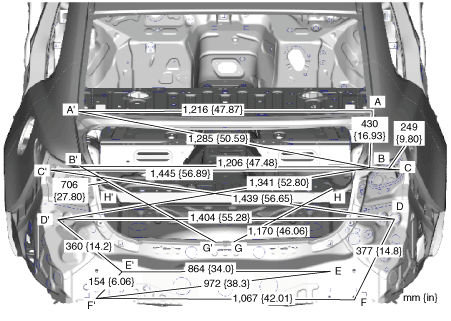

am6zzb00000512
|

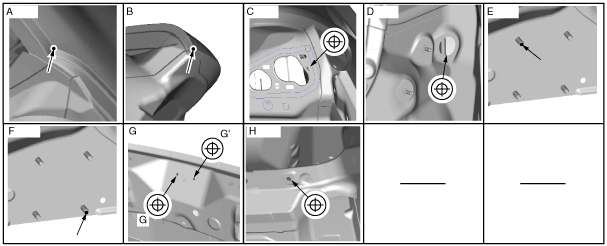

aatjjb00000407
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Cabin side frame (outer) (rear fender panel) projection location
|
—
|
|
B
|
Cabin side frame (outer) (rear fender panel) projection location
|
—
|
|
C
|
Corner plate datum hole
|
φ10 {0.39}
|
|
D
|
Rear combination light wiring harness through hole
|
φ35 {1.4}
|
|
E
|
Rear bumper reinforcement installation bolt
|
M10
|
|
F
|
Rear bumper reinforcement installation bolt
|
M10
|
|
G
|
Trunk lid striker installation nut
|
M6
|
|
H
|
Brace bracket datum hole
|
φ10 {0.39}
|
WGN
am6zzb00000513
|

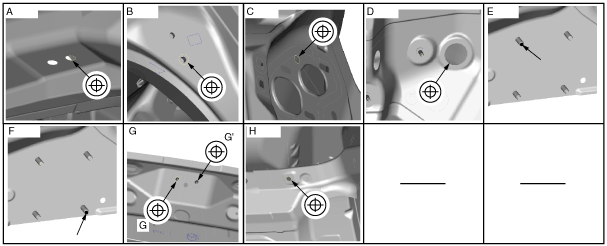

aatjjb00000409
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Liftgate hinge installation hole
|
φ12 {0.47}
|
|
B
|
Liftgate stay damper installation nut
|
M6
|
|
C
|
Corner plate datum hole
|
φ10 {0.39}
|
|
D
|
Rear combination light wiring harness through hole
|
φ35 {1.4}
|
|
E
|
Rear bumper reinforcement installation bolt
|
M10
|
|
F
|
Rear bumper reinforcement installation bolt
|
M10
|
|
G
|
Liftgate striker installation nut
|
M8
|
|
H
|
Brace bracket datum hole
|
φ10 {0.39}
|
