REAR CONSOLE
id099000001600
Purpose of Adoption

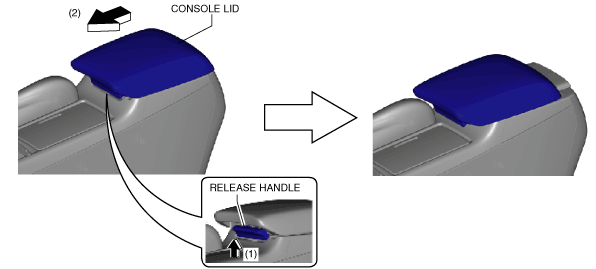

• For the high grade model, there is a stride mechanism in the console lid which enhances the armrest function.
Service Point
• If the release handle of the console lid cannot be reached with the console lid slid, and the lid is forced open, the locking part of the lid could deform and the retention strength decreased.
• If the console lid is slid with a drink in one of the cup holders on the rear side in the console center, the contents could be spilled.
Common Inquiry
• Not applicable
Other
