ENGINE FRONT COVER [SKYACTIV-D 2.2]
id0110s5000900
Purpose, Function
• The engine front cover covers the front of the engine to prevent engine oil spillage, noise leakage, and foreign material penetration.
Construction
• The engine front cover is installed to the front of the engine.
• The lightweight engine front cover is made of aluminum alloy with excellent noise absorption.

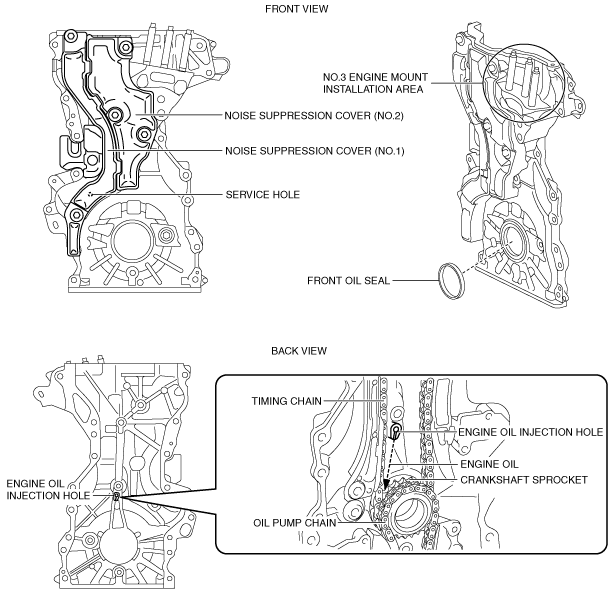

• The engine front cover has the following parts shown in the figure.
