OIL COOLER [SKYACTIV-G 2.5]


id0111h51011h4


Purpose, Function

•  The oil cooler routes engine oil and engine coolant through the interior and disperses the engine oil heat using the engine coolant. As a result, the oil temperature is maintained properly to reduce the engine oil deterioration.

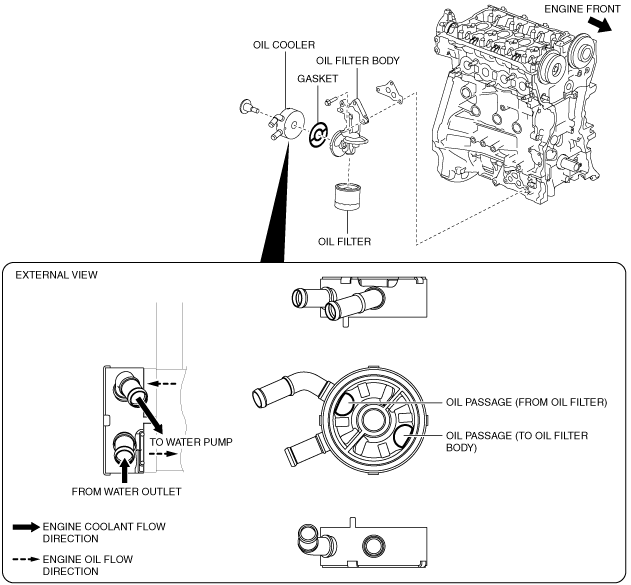

Construction

•  A 9-layered type water-cooled has been adopted.
•  The oil cooler is attached to the oil filter body.
am6zzn00002427
