LUBRICATION SYSTEM LOCATION INDEX [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0111h5800100

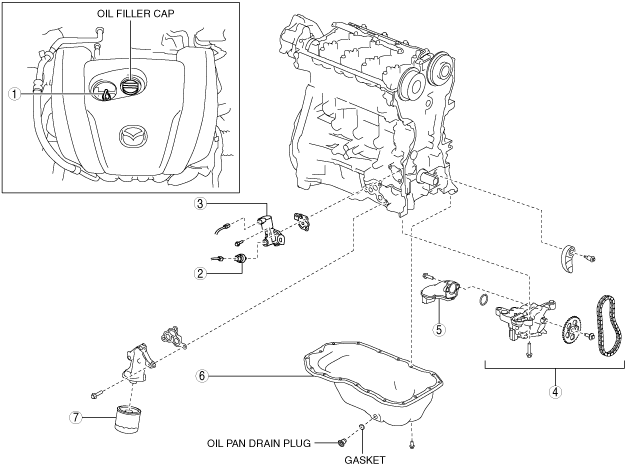

SKYACTIV-G 2.0

am6zzw00012074

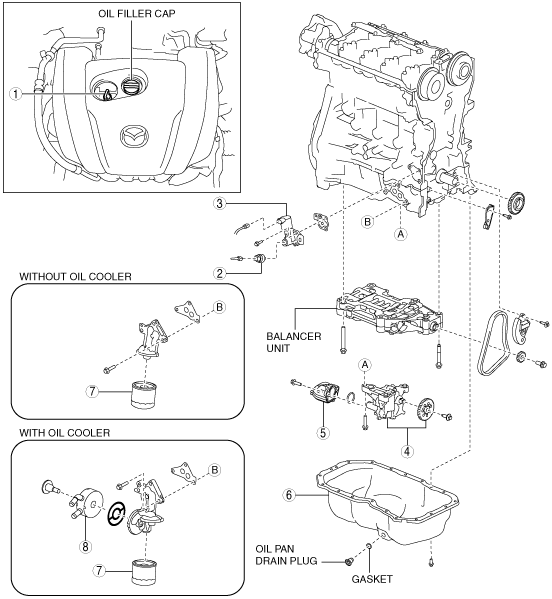

SKYACTIV-G 2.5

am6zzw00012075

1	Dipstick (See ENGINE OIL LEVEL INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See ENGINE OIL REPLACEMENT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
2	Oil pressure switch (See OIL PRESSURE INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
3	Engine oil solenoid valve (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See ENGINE OIL SOLENOID VALVE INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
4	Oil pump component (See OIL PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
5	Oil strainer (See OIL PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
6	Oil pan (See OIL PAN REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
7	Oil filter (See OIL FILTER REPLACEMENT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
8	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
