COOLING SYSTEM [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0112h6002800

Outline

• Passing water resistance is reduced by improvement of the engine coolant passage shape.

• Pump efficiency is improved by changing the water pump impeller to the closed impeller.

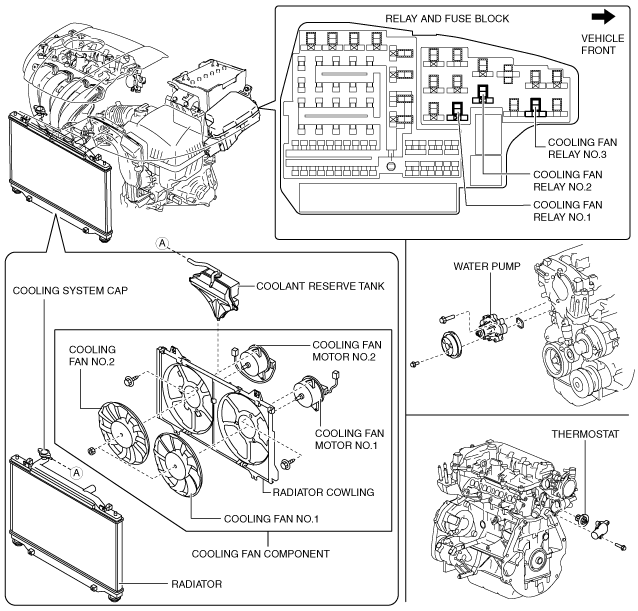

Structural View

am6zzn00002428

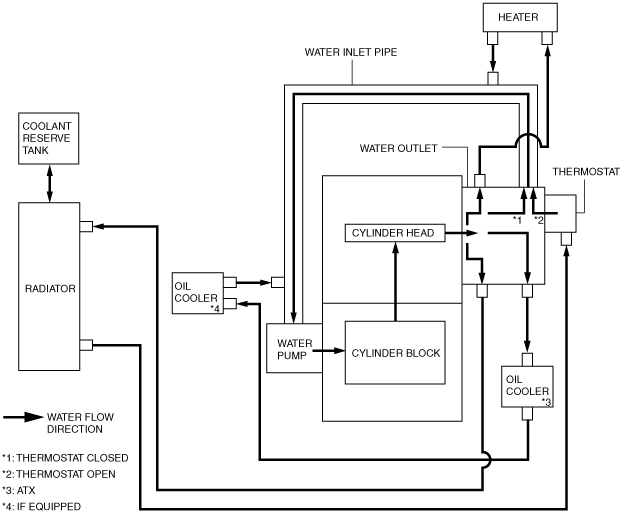

Flow Chart

am6zzn00003108

Structure

• Consists of the following parts:

Radiator	(See RADIATOR [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Cooling system cap	(See COOLING SYSTEM CAP [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Thermostat	(See THERMOSTAT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Water pump	(See WATER PUMP [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Cooling fan component	(See COOLING FAN COMPONENT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Cooling fan relay	(See COOLING FAN RELAY [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
