REGULATING SOLENOID VALVE [SKYACTIV-D 2.2]
id0113z7265100
Purpose, Function
• Introduces intake manifold vacuum to the regulating valve actuator.
• The regulating valve opens according to the control signal from the PCM.
Construction
• Installed to the vacuum pipe bracket on the side of the turbocharger.
• The regulating solenoid valve consists of a coil, spring, and plunger.
Operation

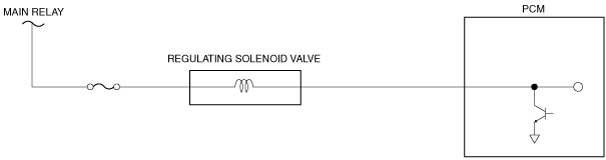

• According to the control signal from the PCM, the coil is energized and the plunger is operated to open/close the regulating solenoid valve.
• By opening the regulating solenoid valve, intake manifold vacuum is introduced to the regulating valve actuator.
Fail-safe
|
DTC
|
Fail-safe
|
|
P0047:00
P0048:00
|
• Inhibits engine-stop by operating the i-stop function.
• PCM restricts engine-transaxle integration control.
|
