WASTEGATE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0113z7266100

Caution

•  If the vacuum hose is installed incorrectly, it could cause a vehicle malfunction. To prevent this, refer to “VACUUM HOSE STRUCTURAL VIEW” and install the vacuum hose correctly. (See Vacuum hose structural view.)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the battery and the battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Remove in the order shown in the figure.

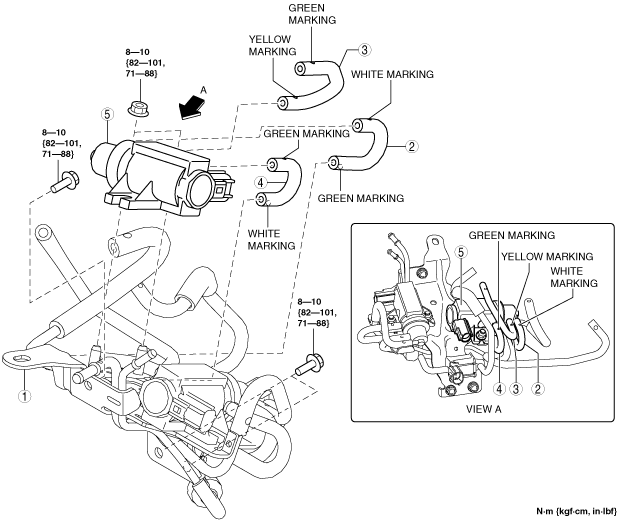

ATX

ac5wzw00004691

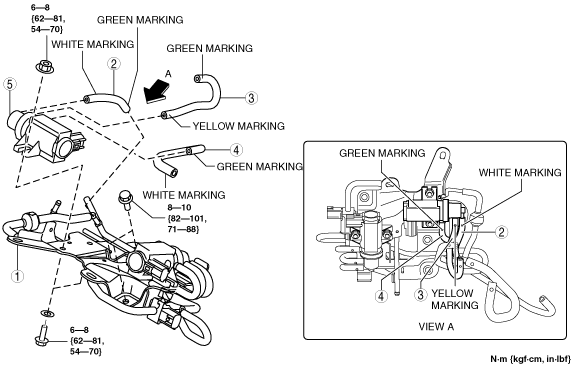

MTX

ac5wzw00004692

1	Vacuum pipe bracket
2	Vacuum hose No.1 (See Vacuum Hose No.1 Installation Note.)
3	Vacuum hose No.2 (See Vacuum Hose No.2 Installation Note.)
4	Vacuum hose No.3 (See Vacuum Hose No.3 Installation Note.)
5	Wastegate solenoid valve

4.  Install in the reverse order of removal.

Vacuum Hose No.3 Installation Note

1.  Install vacuum hose No.3 as shown in the figure.

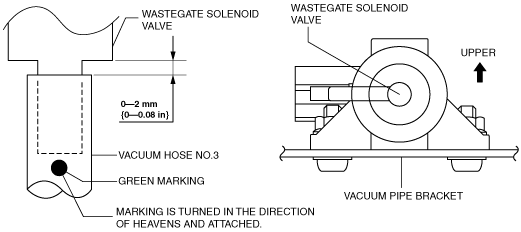

Wastegate solenoid valve side

ac5wzw00004693

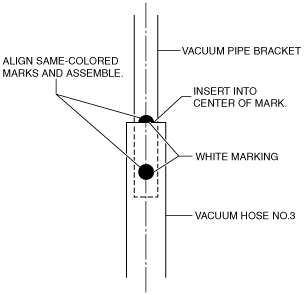

Vacuum pipe bracket side

ac5wzw00004694

Vacuum Hose No.2 Installation Note

1.  Install vacuum hose No.2 as shown in the figure.

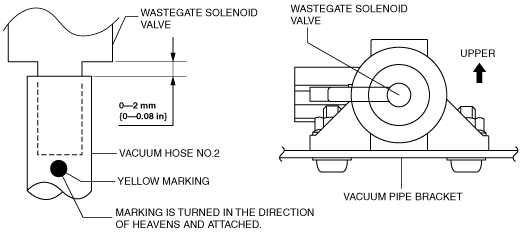

Wastegate solenoid valve side

ac5wzw00004695

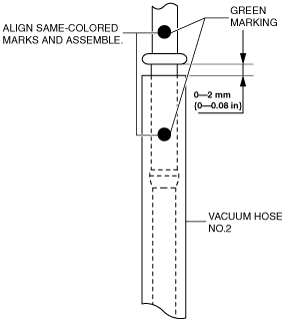

Wastegate valve actuator side

ac5wzw00004696

Vacuum Hose No.1 Installation Note

1.  Install vacuum hose No.1 as shown in the figure.

Wastegate solenoid valve side

ac5wzw00004697

Vacuum pipe bracket side

ac5wzw00004698

Vacuum hose structural view

1.  Verify that the vacuum hose is installed correctly as shown in the figure.

Whole figure (ATX)

ac5wzw00004669

Whole figure (MTX)

ac5wzw00004670

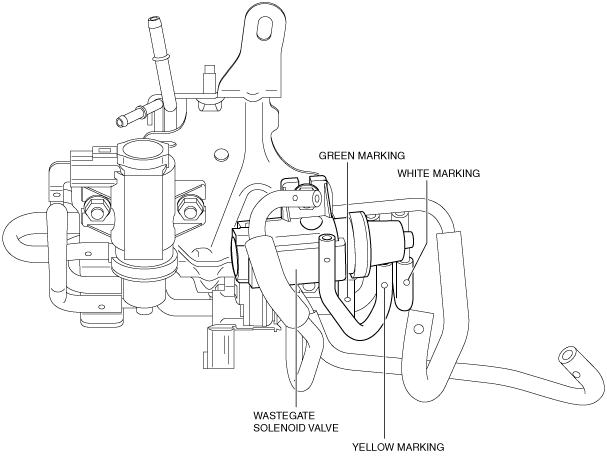

Wastegate solenoid valve side (ATX)

ac5wzw00004701

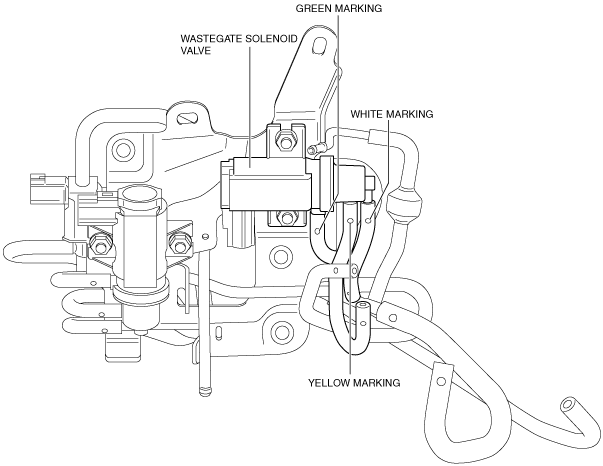

Wastegate solenoid valve side (MTX)

ac5wzw00004702

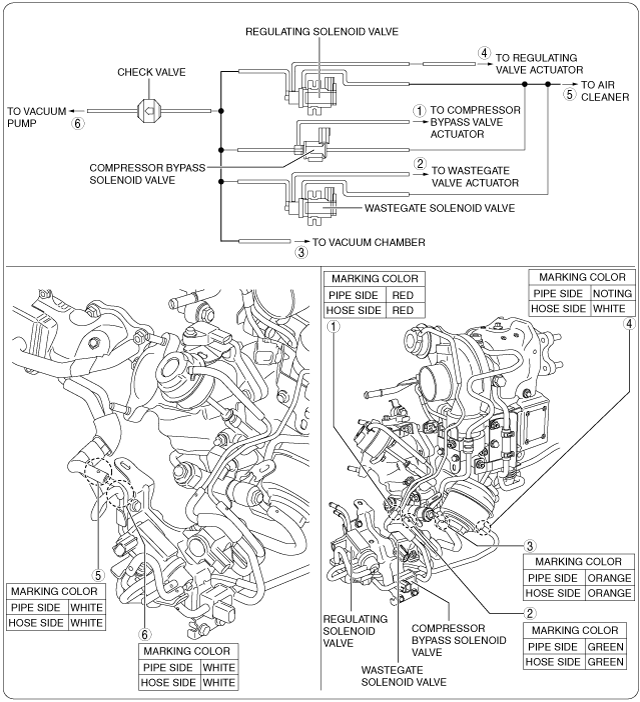

Vacuum pipe bracket side (ATX)

ac5wzw00004703

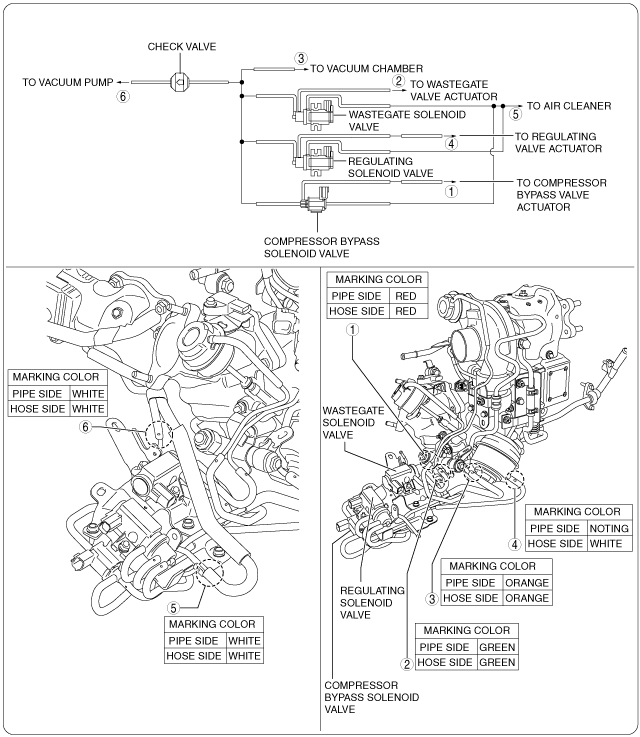

Vacuum pipe bracket side (MTX)

ac5wzw00004704
