EGR VALVE [SKYACTIV-D 2.2]

id0116e1112500

Purpose, Function

• Recirculates the exhaust gas back to the intake manifold.

Construction

• The EGR valve is installed to the intake manifold.

ac5wzn00001975

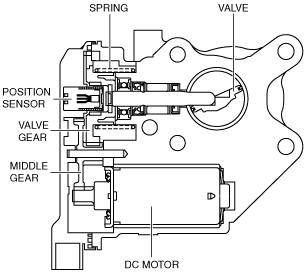

• The EGR valve consists of the DC motor, plug, valve, and spring.

ac5wzn00001976

Operation

• The PCM drives the DC motor of the EGR valve by the pulse-width modulation signal.

• By using the EGR valve DC motor, a high precision EGR system is assured.

Fail-safe

DTC

Fail-safe

P0404:00

P0405:00

P0406:00

P0488:00

•  PCM restricts engine torque.

•  Inhibits the auto DPF regeneration control.

•  Inhibits the compulsory DPF regeneration control.

•  Inhibits the EGR control.

•  PCM restricts engine-transaxle integration control. (ATX)

•  Inhibits engine-stop by operating the i-stop function.
