•  Introduces evaporative gas absorbed by the charcoal canister to the intake manifold.

•  The purge solenoid valve opens according to the control signal from the PCM.

•  The purge solenoid valve is installed in the engine compartment.

ac5uun00000081

•  The purge solenoid valve consists of a coil, spring, and plunger.

am3uun00002156

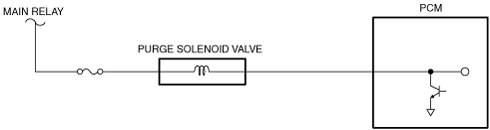

•  According to the control signal from the PCM, the coil is energized and the plunger is operated to open/close the purge solenoid valve.

am3uun00002157

•  When the purge solenoid valve is open, evaporative gas flows from the charcoal canister to the intake manifold side.

Purge solenoid valve open/closed view

am3uun00002158

•  For evaporative purge control details, refer to CONTROL SYSTEM. (See PURGE CONTROL [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

•  Function not equipped.
