CHARGING SYSTEM LOCATION INDEX [SKYACTIV-D 2.2 (WITHOUT i-ELOOP)]

id0117h68001i4

Note

•  For location index of the generator, DC-DC converter (i-ELOOP), capacitor (i-ELOOP) on vehicles with i-ELOOP, refer to the i-ELOOP section. (See CHARGING SYSTEM LOCATION INDEX [SKYACTIV-D 2.2 (WITH i-ELOOP)].)

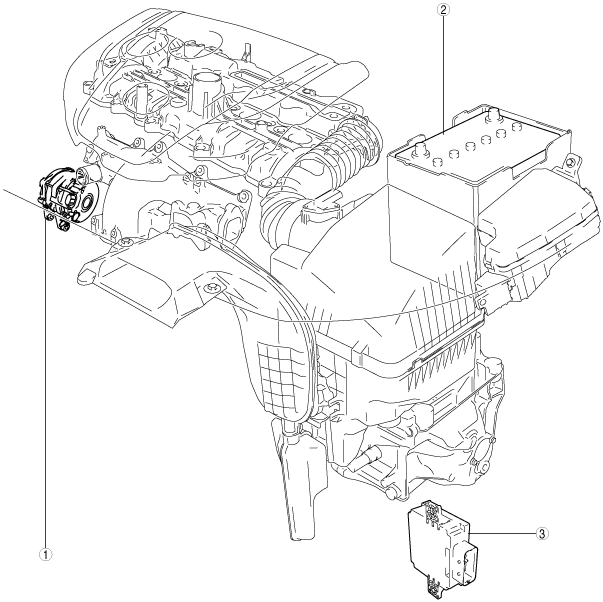

am6zzw00010295

1	Generator (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2 (WITHOUT i-ELOOP)].) (See GENERATOR INSPECTION [SKYACTIV-D 2.2 (WITHOUT i-ELOOP)].) (See GENERATOR DISASSEMBLY/ASSEMBLY [SKYACTIV-D 2.2 (WITHOUT i-ELOOP)].)
2	Battery (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See BATTERY INSPECTION [SKYACTIV-D 2.2].) (See BATTERY RECHARGING [SKYACTIV-D 2.2].) (See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING) [SKYACTIV-D 2.2].)
3	DC-DC converter (See DC-DC CONVERTER REMOVAL/INSTALLATION [SKYACTIV-D 2.2 (WITHOUT i-ELOOP)].) (See DC-DC CONVERTER INSPECTION [SKYACTIV-D 2.2 (WITHOUT i-ELOOP)].)
