CHARGING SYSTEM [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-ELOOP)]

id0117i01029i2

Note
•  For location index of the generator, DC-DC converter (i-ELOOP), capacitor on vehicles with i-ELOOP, refer to the i-ELOOP section. (See i-ELOOP [i-ELOOP].)

Outline

•  Regulator-less generator (built-in power transistor) has been adopted.
•  A generator using two delta connection type stator coils has been adopted.

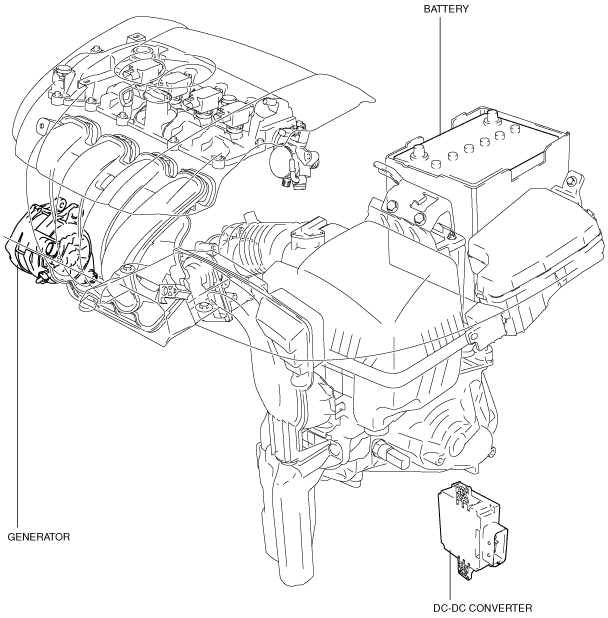

Structural View

am6zzn00002436

Structure

•  Consists of the following parts:

Battery
(See BATTERY [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Generator
(See GENERATOR [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-ELOOP)].)
DC-DC converter (Vehicle with i-stop)
(See DC-DC CONVERTER [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-ELOOP)].)
Charging system warning light
(See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
