CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2]

id0120e5903500

Purpose/Function

• Illuminates during the cruise control system operation to inform the driver that the cruise control system is operating.

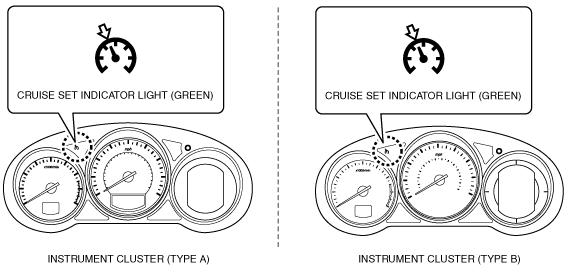

Construction

• Built into the instrument cluster.

am6zzn00003307

Operation

• Illuminates during the cruise control system operation.

• The PCM sends a cruise set indicator light (green) illumination request to the instrument cluster via CAN communication.

Fail-safe

• Function not equipped.
