SELECT MODE INDICATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0121e8000500

Purpose

• The select mode indication notifies the driver that the sport mode has been selected using the drive selection switch, or that switching of the drive selection is not possible.

Function

• When the sport mode is selected using the drive selection switch, the instrument cluster turns the select mode indication on.

• The instrument cluster flashes the select mode indication based on the select mode indication flash request signal from the PCM.

Construction

• Instrument cluster with built-in select mode indication have been adopted.

ac5uun00002026

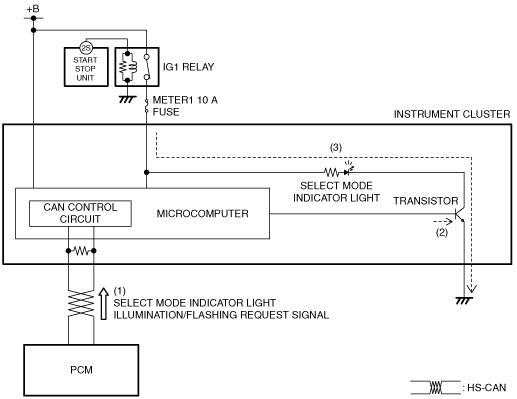

Operation

1. The instrument cluster receives (1) the select mode indication illumination/flashing request signal via CAN communication from the PCM.

2. The instrument cluster turns the transistor on (2) intermittently for the select mode indication flash request signal.

3. The instrument cluster turns the transistor on (2) continuously for the select mode indication llumination request signal.

4. When the transistor is turned on intermittently, the select mode indication flashes (3).

5. When the transistor is turned on continuously, the select mode indication illuminates (3).

adejjn00004103

Fail-safe

• Not applicable
