ENGINE CONTROL SYSTEM [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0140g2139900

Outline

• L-jetronic^*1 and D-jetronic^*2 type detectors have been combined for intake air amount detection, improving the accuracy of the intake air amount measurement.

― MAF sensor adopted

― MAP sensor adopted

― IAT sensor No.1 and No.2 adopted

• Valve timing control has been adopted on both sides of the intake and exhaust, improving fuel economy and emission performance.

Intake side: Electric variable valve timing control

― Intake CMP sensor adopted

― Electric variable valve timing motor/driver adopted

― Electric variable valve timing relay adopted

Exhaust side: Hydraulic variable valve timing control

― Exhaust CMP sensor adopted

• Engine oil control has been adopted reducing engine load.

― Engine oil solenoid valve adopted

• DC-DC converter control has been adopted for improved power supply stability. (Without i-ELOOP)

― DC-DC converter adopted

• With the adoption of the i-ELOOP, charging efficiency during deceleration is improved. (With i-ELOOP)

― DC-DC converter (i-ELOOP) adopted

• With the adoption of fuel pump control, fuel pump power consumption has been reduced, improving fuel economy.

― Fuel pump control module adopted

• Generator output control adopted, fuel economy/idling stability improved.

― Current sensor adopted

• With the adoption of the ion sensor, which detects pre-ignition, engine reliability has been improved.

• LIN communication has been adopted to the current sensor and DC-DC converter for simplified wiring harnesses.

*1 :Measures the intake air amount directly using the MAF sensor.

*2 :Measures the intake air pressure introduced into the cylinder using the MAP sensor and calculates the intake air amount indirectly.

Structural View

Input device

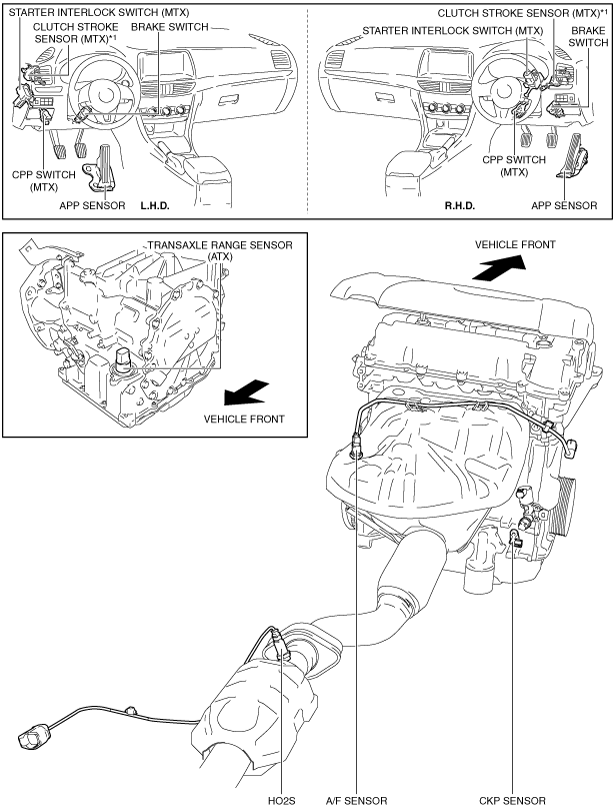

am6zzn00001845

*1 :With i-stop system

*2 :With air conditioner

*3 :With i-stop system (MTX)

*4 :Without i-stop system (MTX)

*5 :IG1 relay

am6zzn00001846

*1 :With i-stop system

Output device

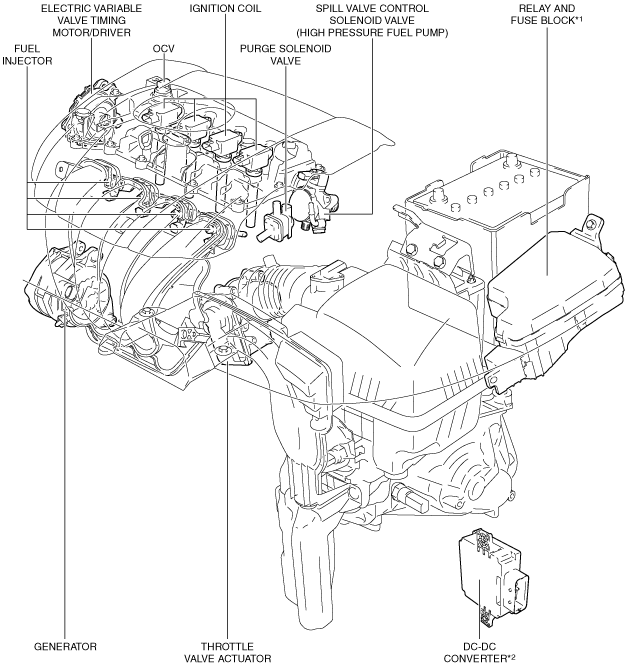

am6zzn00001847

*1 :Fuel pump relay, starter relay, electric variable valve timing relay, fuel injector relay, main relay, A/C relay, cooling fan relay No.1, cooling fan relay No.2, cooling fan relay No.3

*2 :With i-stop, without i-ELOOP

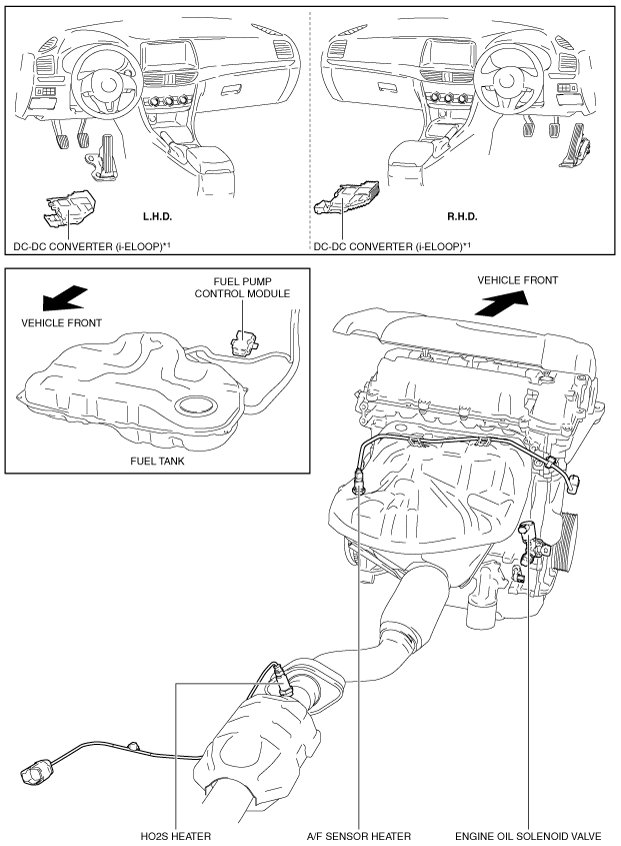

am6zzn00001848

*1 :With i-stop and i-ELOOP

System Diagram

Input device

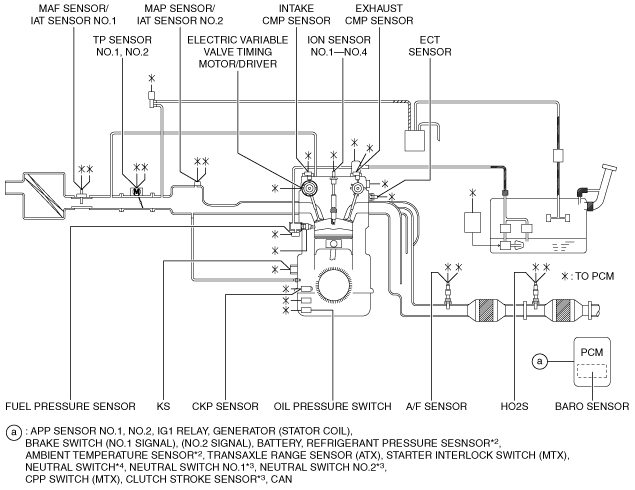

am6zzn00001849

*1 :With i-stop system

*2 :With air conditioner

*3 :With i-stop system (MTX)

*4 :Without i-stop system (MTX)

Output device

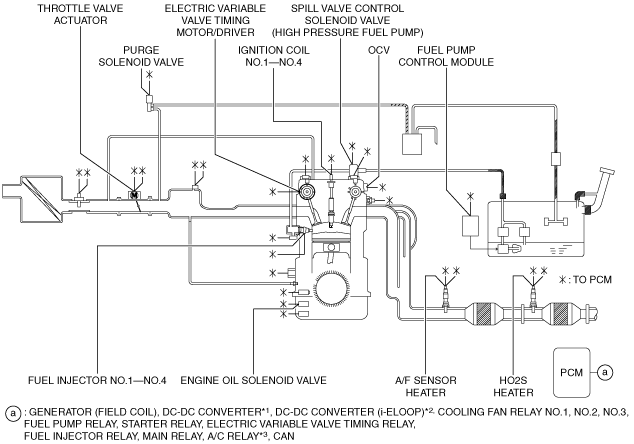

am6zzn00001850

*1 :With i-stop, without i-ELOOP

*2 :With i-ELOOP

*3 :With air conditioner

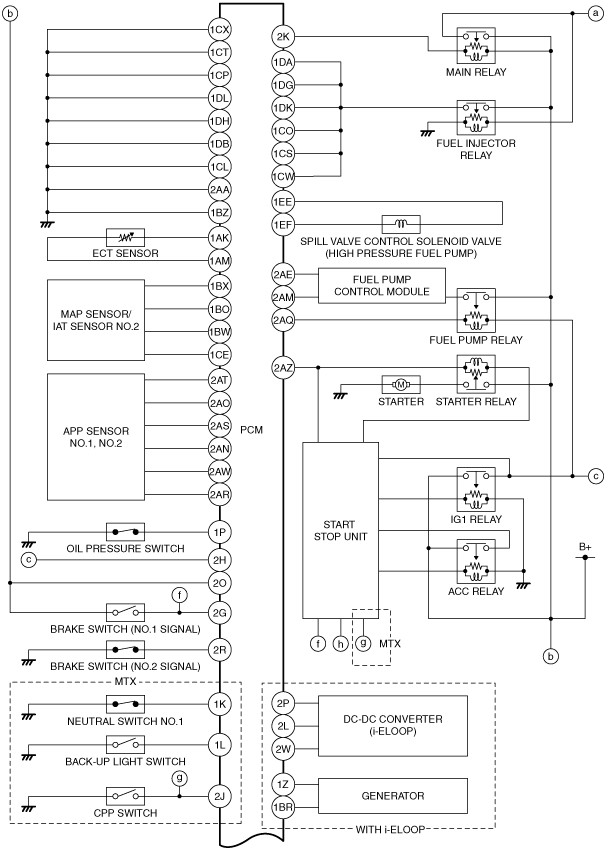

System Wiring Diagram

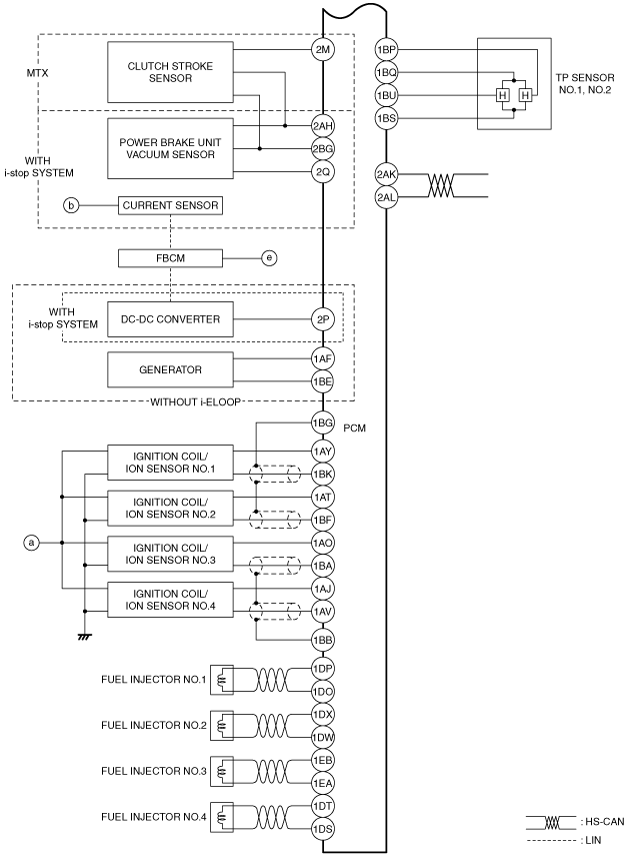

am6zzw00013500

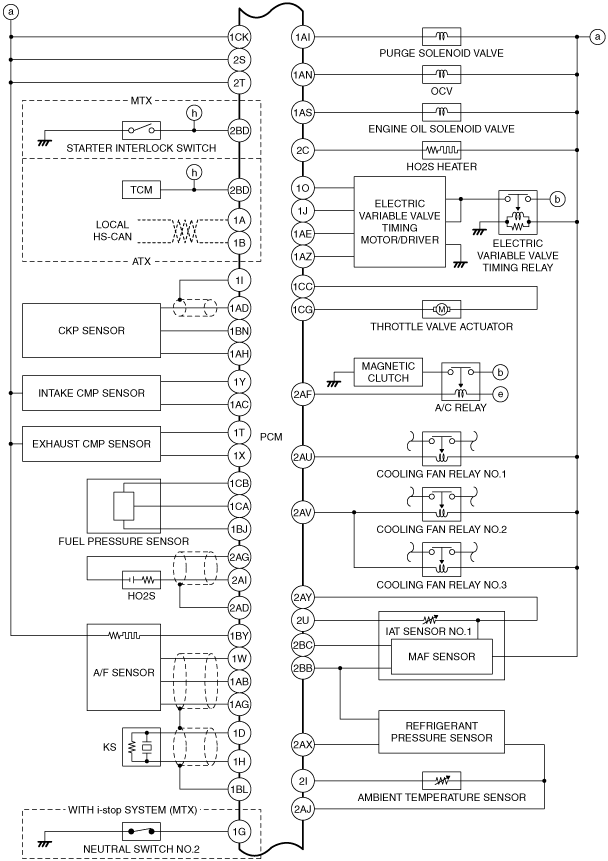

am6zzw00013501

am6zzw00013502

Block Diagram

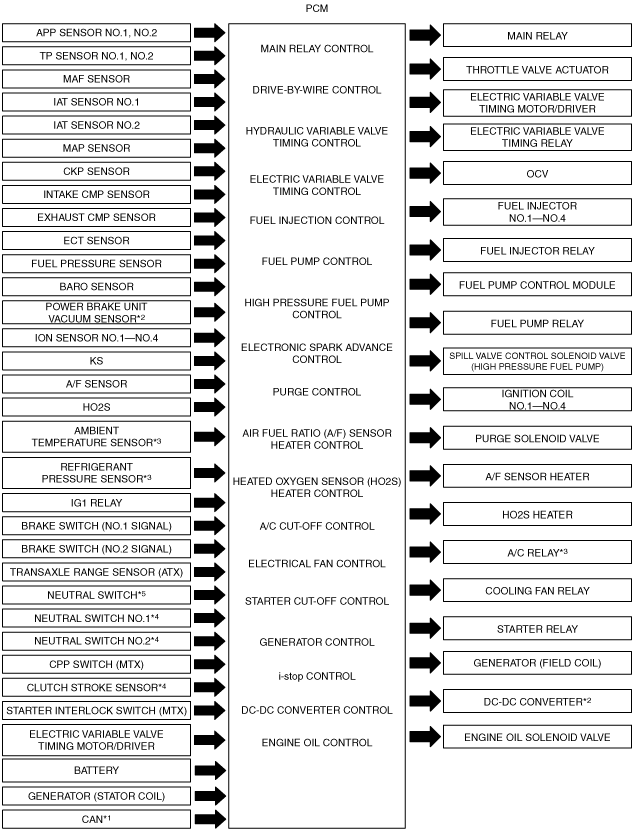

am6zzn00001851

*1 :TCM (ATX), DSC HU/CM, front body control module (FBCM), rear body control module (RBCM), instrument cluster, start stop unit, EPS control module

*2 :With i-stop system

*3 :With air conditioner

*4 :With i-stop system (MTX)

*5 :Without i-stop system (MTX)

Relation Chart

• Each control system and their related input and output parts are as follows.

×: Applicable

Item

Input device

APP sensor No.1, No.2

×

×

×

×

×

×

×

×

TP sensor No.1, No.2

×

×

×

×

MAF sensor

×

×

×

×

×

×

×

×

×

×

×

IAT sensor No.1

×

×

×

×

×

×

×^*3

×

IAT sensor No.2

×

×

×

×

×

MAP sensor

×

×

×

×

×

×

×

CKP sensor

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Intake CMP sensor

×

×

×

×

×

Exhaust CMP sensor

×

×

×

×

×

×

ECT sensor

×

×

×

×

×

×

×

×

×

×

×

×^*3

×

×

Fuel pressure sensor

×

×

×

×

×

BARO sensor

×

×

×

×

×

×

×

Power brake unit vacuum sensor^*2

×

Ion sensor No.1—No.4

×

×

KS

×

A/F sensor

×

×

HO2S

×

Ambient temperature sensor^*4

×

×

Refrigerant pressure sensor^*4

×

×

IG1 relay

×

×

×

×

×

×

×

×

×

×

Brake switch (No.1 signal)

×

×

Brake switch (No.2 signal)

×

Transaxle range sensor (ATX)

×

×

×

×

CPP switch (MTX)

×

×

×

×

×

Starter interlock switch (MTX)

×

Clutch stroke sensor^*5

×

Neutral switch^*6

×

×

×

×

×

Neutral switch No.1^*5

×

×

×

×

×

Neutral switch No.2^*5

×

Electric variable valve timing motor/driver

×

×

Battery

×

×

×

×

×

×

×

Generator (Stator coil)

×

CAN^*1

×

×

×

×

×

×

×^*2

×

×

Output device

Main relay

×

Throttle valve actuator

×

×

Electric variable valve timing motor/driver

×

×

×

Electric variable valve timing relay

×

×

OCV

×

Fuel injector No.1—No.4

×

×

Fuel injector relay

×

×

Fuel pump control module

×

Fuel pump relay

×

Spill valve control solenoid valve (High pressure fuel pump)

×

Ignition coil No.1—No.4

×

×

Purge solenoid valve

×

A/F sensor heater

×

HO2S heater

×

A/C relay^*4

×

Cooling fan relay No.1, No.2, No.3

×

Starter relay

×

×

Generator (Field coil)

×

×

DC-DC converter^*2

×

×

Engine oil solenoid valve

×

*1 :TCM (ATX), DSC HU/CM, front body control module (FBCM), rear body control module (RBCM), instrument cluster, start stop unit, EPS control module

*2 :With i-stop system

*3 :Without i-stop system

*4 :With air conditioner

*5 :With i-stop system (MTX)

*6 :Without i-stop system (MTX)

Item
Input device
APP sensor No.1, No.2		×	×		×			×	×		×	×			×
TP sensor No.1, No.2		×			×						×				×
MAF sensor		×	×	×	×		×	×	×	×		×			×		×
IAT sensor No.1		×		×	×			×	×			×		×^*3	×
IAT sensor No.2		×		×	×			×							×
MAP sensor		×		×	×			×	×						×		×
CKP sensor		×	×	×	×	×	×	×	×	×	×	×	×	×	×		×
Intake CMP sensor		×		×	×			×							×
Exhaust CMP sensor		×	×		×		×	×							×
ECT sensor		×	×	×	×		×	×	×	×	×	×	×	×^*3	×		×
Fuel pressure sensor		×			×	×	×								×
BARO sensor		×		×	×	×			×			×			×
Power brake unit vacuum sensor^*2															×
Ion sensor No.1—No.4				×	×
KS								×
A/F sensor					×				×
HO2S					×
Ambient temperature sensor^*4											×	×
Refrigerant pressure sensor^*4											×	×
IG1 relay	×		×		×	×		×		×		×	×		×	×
Brake switch (No.1 signal)		×													×
Brake switch (No.2 signal)		×
Transaxle range sensor (ATX)		×			×								×		×
CPP switch (MTX)		×			×			×			×				×
Starter interlock switch (MTX)													×
Clutch stroke sensor^*5															×
Neutral switch^*6		×			×			×			×				×
Neutral switch No.1^*5		×			×			×			×				×
Neutral switch No.2^*5															×
Electric variable valve timing motor/driver				×											×
Battery			×			×	×	×	×					×	×
Generator (Stator coil)		×
CAN^*1		×			×			×			×	×	×	×^*2	×	×
Output device
Main relay	×
Throttle valve actuator		×													×
Electric variable valve timing motor/driver				×	×										×
Electric variable valve timing relay				×											×
OCV			×
Fuel injector No.1—No.4					×										×
Fuel injector relay					×										×
Fuel pump control module						×
Fuel pump relay						×
Spill valve control solenoid valve (High pressure fuel pump)							×
Ignition coil No.1—No.4								×							×
Purge solenoid valve									×
A/F sensor heater										×
HO2S heater										×
A/C relay^*4											×
Cooling fan relay No.1, No.2, No.3												×
Starter relay													×		×
Generator (Field coil)														×	×
DC-DC converter^*2															×	×
Engine oil solenoid valve																	×
