CAMSHAFT POSITION (CMP) SENSOR [SKYACTIV-D 2.2]
id0140z7006700
Purpose/Function
• Detects the camshaft speed as basic information for mainly determining the fuel injection timing.
• Detects the camshaft speed and inputs it to the PCM as a CMP signal.
Construction
• Installed on the cylinder head.
• An MR (Magnetic Resistance) element has been adopted as the detecting element for detecting the camshaft speed.
Operation
• Inputs the signal, which fluctuates according to the camshaft speed, to the PCM.

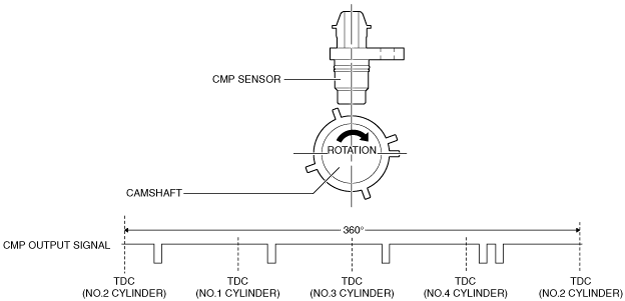

CMP sensor characteristic
Fail-safe
• Function not equipped.
