REAR TRAILING LINK REMOVAL/INSTALLATION

id021400800100

1.  Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  Inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT.)

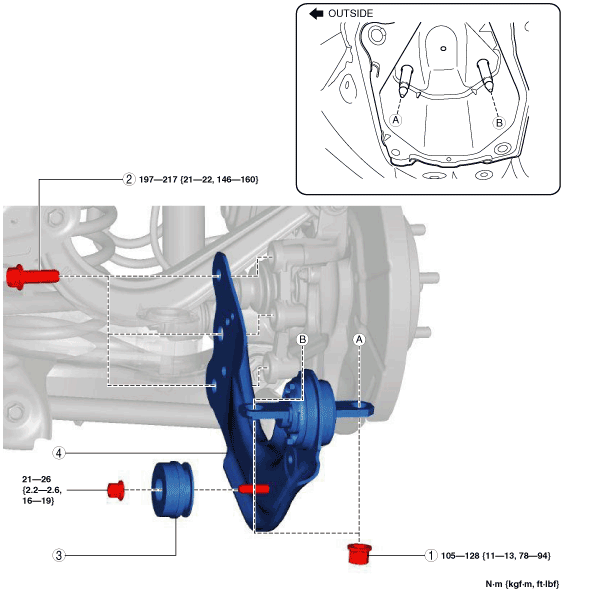

am6zzw00012931

1	Rear trailing link installation nut
2	Rear trailing link installation bolt
3	Dynamic damper
4	Rear trailing link (See Rear Trailing Link Installation Note.)

Rear Trailing Link Installation Note

1.  Install the rear trailing link installation bolts using a jack.

am6zzw00012932

2.  Install the rear trailing link installation nut.
