OIL SEAL (COUPLING COMPONENT) REPLACEMENT

id031400802000

1.  Drain the differential oil into a container.

2.  Remove the coupling component. (See COUPLING COMPONENT REMOVAL/INSTALLATION.)

3.  Remove the oil seal from the differential carrier using a screwdriver or similar tool.

4.  Apply differential oil to the new oil seal lip.

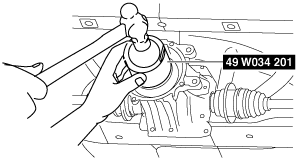

5.  Install the new oil seal to the differential carrier using the SST.

ac5uuw00000876

6.  Install the coupling component. (See COUPLING COMPONENT REMOVAL/INSTALLATION.)

7.  Add the specified differential oil from the filler plug. (See DIFFERENTIAL OIL REPLACEMENT.)
