DIFFERENTIAL [D66M-R, D66MX-R]

id0515md284200


Purpose, Function

•  The differential absorbs the rotation speed of the inside and outside wheel of a wheel set when the vehicle is cornering.

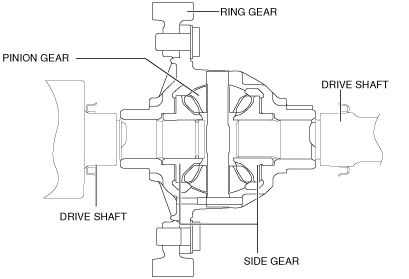

Construction

ac5wzn00001795

Operation

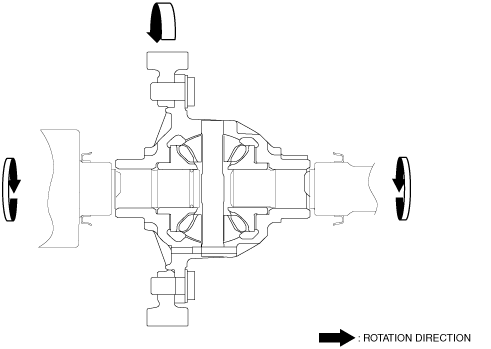

Driving in a straight line

am3uun00001802

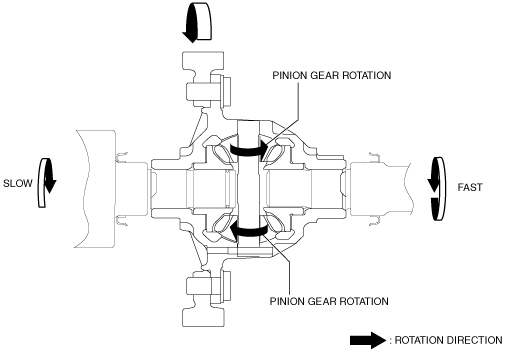

Cornering

am3uun00001803
