M POSITION SWITCH [FW6A-EL]
id0517h1360300
Purpose/Function
• The M position switch detects that the selector lever is in the M position.
• The M position switch signal is sent to the TCM via CAN, and is used for manual shift control and engine-transaxle integration control.
Construction

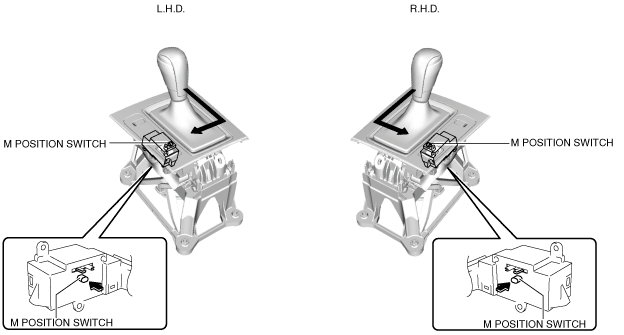

• The M position switch is installed to the selector lever.
• The M position switch is an on/off type switch.
Operation

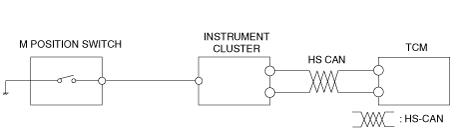

• When the selector lever is in the M position, the M position switch contact point closes.
• By opening and closing the M position switch contact point, the TCM detects that the selector lever is in the M position.
