BASIC SYSTEM

id071100310100


Outline

•  Integrated A/C unit adopted.
•  Sub-cooling system to multi-flow condenser adopted.
•  A rear vent duct has been adopted for the ventilation system to operate the A/C to the rear seat efficiently. (with rear vent)

Structural View

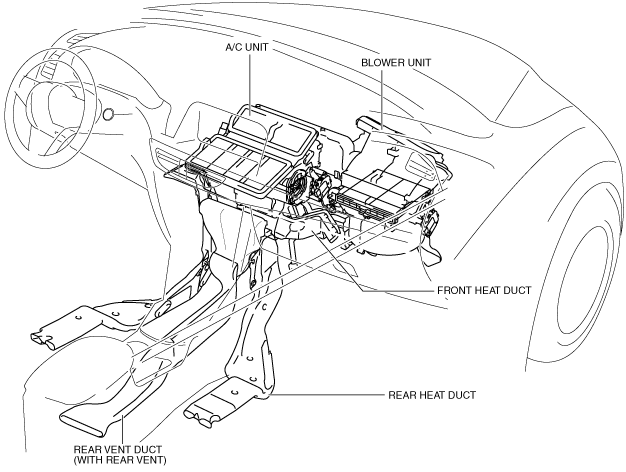

Ventilation system

L.H.D.

am6zzn00002541

R.H.D.

am6zzn00003138

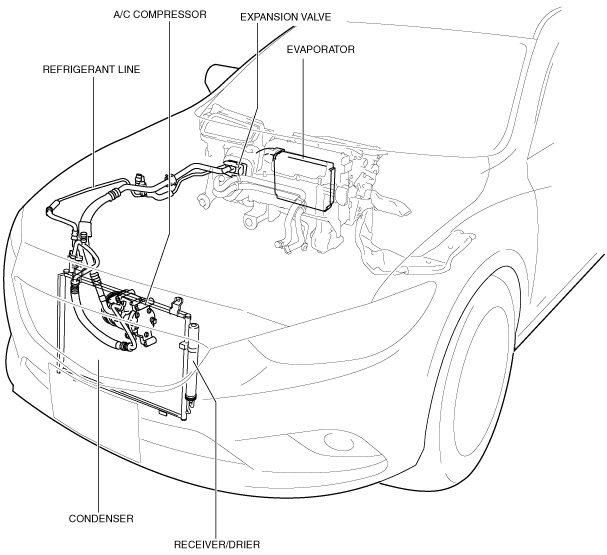

Refrigerant system

am6zzn00002543


Flow Diagram

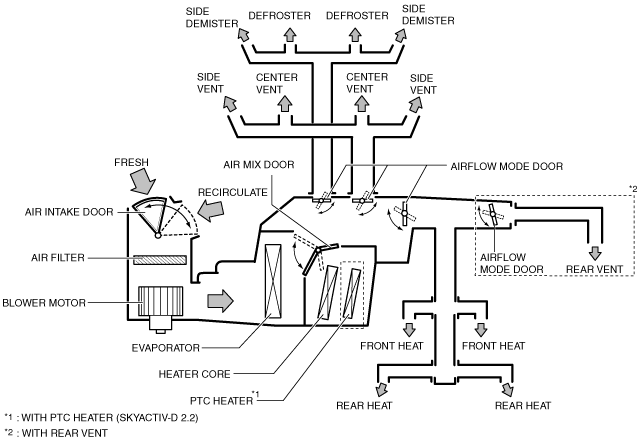

Ventilation system

A/C unit

am6zzn00002544

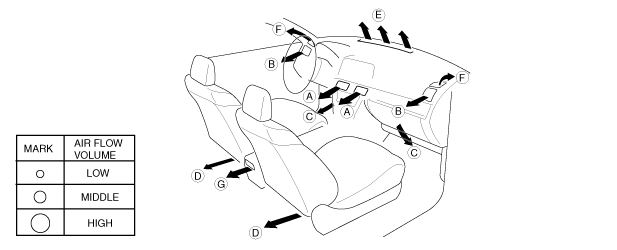

Inside the vehicle

am6zzn00002545

Display

CENTER VENT

SIDE VENT

FOOT VENT

FRONT DEFROSTER

SIDE DEFROSTER

REAR VENT (WITH REAR VENT)

Front

Rear

A

B

C

D

E

F

G
—
—
—
—
—
—
—
—
—
—
—
—

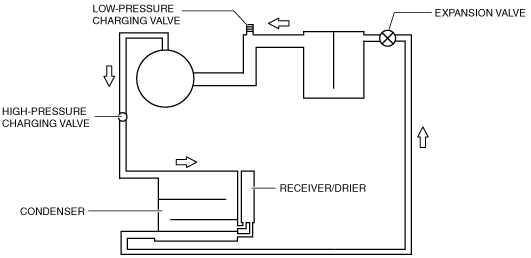

Refrigerant system

ac5wzn00001109
