REFRIGERANT LINE
id071100310600
Purpose
• The system piping connects each related part of the refrigerant system.
Construction
• Block-type piping has been adopted to the pipe connection, improving the efficiency of piping related servicing.
• The pipes in the piping system consist of the following parts.
-
― Cooler hose (HI)
― Cooler hose (LO)
― Cooler pipe
• The pipes in the piping system are made of aluminum alloy and the hoses are made of rubber (flexible hose).
• A high-pressure charging valve is located on the cooler pipe (HI) and a low-pressure charging valve is located on the cooler pipe (LO).
L.H.D.

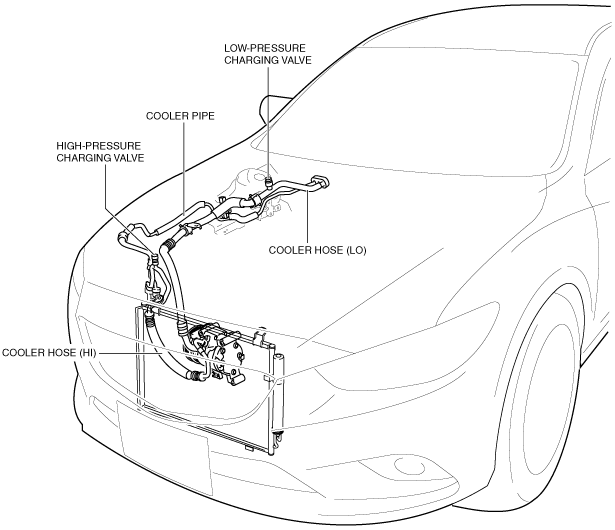

SKYACTIV-G 2.0, SKYACTIV-G 2.5

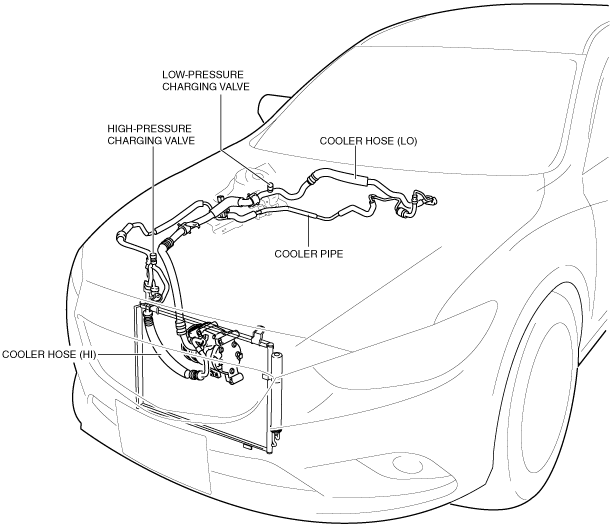

SKYACTIV-D 2.2
R.H.D.

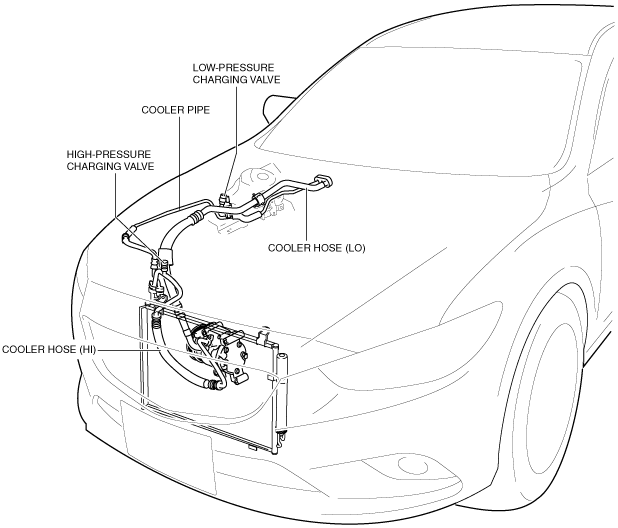

SKYACTIV-G 2.0, SKYACTIV-G 2.5

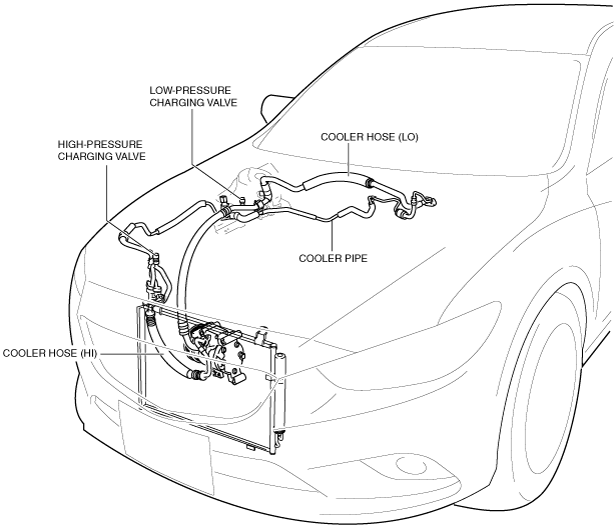

SKYACTIV-D 2.2
Fail-safe
• Function not equipped.
