•  The cabin temperature sensor detects the cabin temperature.

•  The cabin temperature sensor converts the detected temperature to an electric signal.

•  A thermistor-type cabin temperature sensor has been adopted.

•  The cabin temperature sensor is installed to the lower panel (driver’s side).

•  The thermistor changes the resistance according to the surrounding temperature.

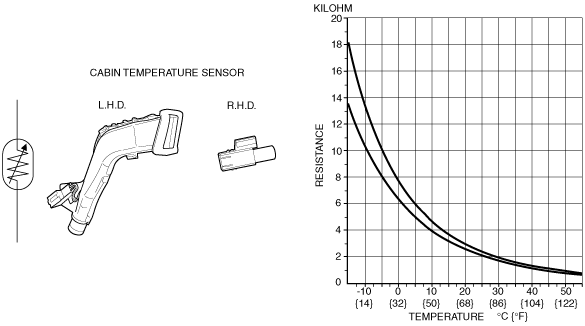

•  The resistance decreases if the temperature increases, and conversely increases if the temperature decreases as shown in the figure.

•  Function not equipped.
