CONTROL SYSTEM [MANUAL AIR CONDITIONER]


id0740a2126500


Outline

•  Blower fan controller has been adopted
•  Refrigerant pressure sensor adopted in which refrigerant pressure is changed into a linear electric signal and precise information is transmitted.
•  MS-CAN for communication between the instrument cluster and climate control unit adopted.
•  Climate control unit with enlarged operation dials and switches adopted
•  A PTC heater has been adopted to temporarily improve the A/C unit heating performance for diesel engine vehicles which have good thermal efficiency (with PTC heater).

Structural View

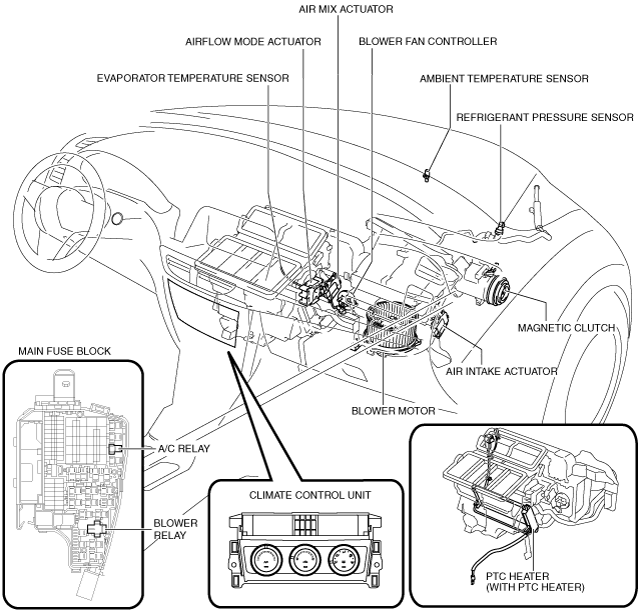

L.H.D.

am6zzn00003156

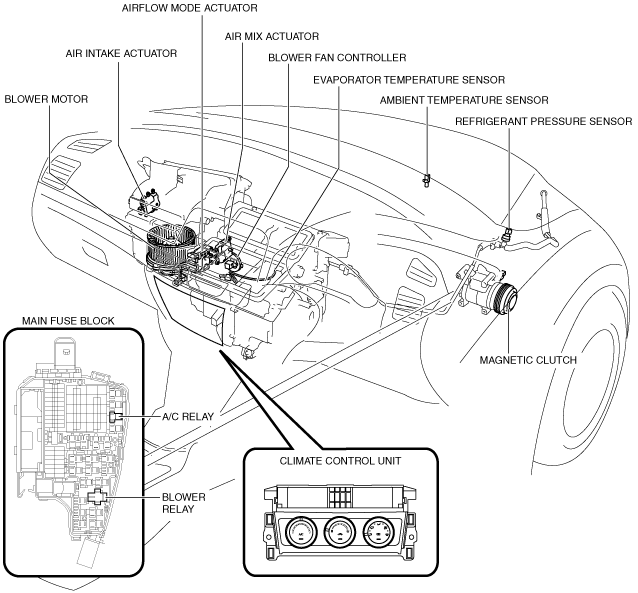

R.H.D.

am6zzn00003157

System Wiring Diagram

am6zzn00003158
