AIR CONDITIONER i-stop CONTROL [MANUAL AIR CONDITIONER]
id0740a2126800
Purpose
• The heater control unit controls i-stop to permit/inhibit its operation (engine stop control) according to the air conditioner system operation conditions.
Function

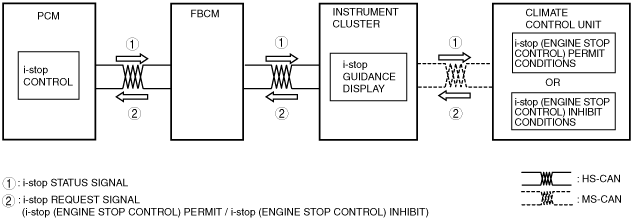

• The climate control unit determines i-stop control according to the operation condition of the air conditioner system and sends i-stop request signals to the front body control module (FBCM).
Operation
i-stop request control (i-stop (engine stop control) permit/ i-stop (engine stop control) inhibit)
-
• The climate control unit sends i-stop (engine stop control) permit or inhibit request signals to the front body control module (FBCM) according to the operation condition of the air conditioner system.
-
i-stop (engine stop control) inhibit request
-
• The climate control unit sends an i-stop (engine stop control) inhibit request signal to the front body control module (FBCM) when it detects any of the following conditions:
i-stop (engine stop control) inhibit conditions
|
No.
|
Item
|
Vehicle condition
|
|
1
|
• Airflow mode
• Blower motor
|
When all of the following conditions have been met, i-stop (engine stop control) inhibit is determined:
• Airflow mode during defrost
• Blower motor is ON
|
|
2
|
Ambient temperature
|
Ambient temperature is -10 °C {14 °F} or below, or 50 °C {122 °F} or more
|
|
3
|
Engine coolant temperature
|
When all of the following conditions are met, i-stop (engine stop control) inhibit is determined:
• Engine coolant temperature signal is the specified value or less for i-stop (engine stop control) permit conditions
• Blower motor is ON
• Ambient temperature is 9 °C {48 °F}or less
|
|
4
|
Evaporator temperature
|
When all of the following conditions have been met, i-stop (engine stop control) inhibit is determined:
• Evaporator signal is the specified value or less for i-stop (engine stop control) permit conditions
• A/C is ON
• Ambient temperature is 30 °C {86 °F} or more
|
-
i-stop (engine stop control) permit request
-
• When the heater control unit sends an i-stop (engine stop control) permit signal to the front body control module (FBCM) if the i-stop (engine stop control) inhibit conditions are not detected.
A/C control start during i-stop (engine stop control)
-
• If the climate control unit determines that the engine is stopped based on an i-stop status signal sent from the PCM when A/C is stopped by i-stop control, the climate control unit starts A/C control in conjunction with the engine stop condition.
• If the engine is stopped during A/C control, the A/C compressor magnetic clutch turns off and the A/C indicator light remains in an illuminated condition. When the engine is restarted, the A/C compressor magnetic clutch turns on again.
• If the engine is stopped while the PTC heater is operating, the PTC heater turns off. When the engine is re-started, the PTC heater returns to normal control.
