CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER]


id0740a2802200

1.  Remove the climate control unit with the connector connected. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

2.  Switch the ignition ON (engine off or on).

3.  Connect the negative (-) lead of the tester to body ground.

4.  By inserting the positive (+) lead of the tester into each climate control unit terminal, measure the voltage according to the terminal voltage table.

•  If there is any malfunction, inspect the parts under “Inspection item (s)”.
―  If the parts under “Inspection item (s)” are found to be normal (except for terminal Q), replace the climate control unit.
―  For terminal Q, first try replacing the blower fan controller. If there is still any malfunction, replace the climate control unit.

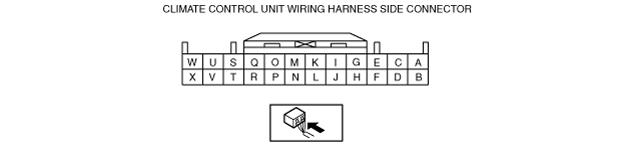

Terminal Voltage Table (Reference)

am6zzw00010739

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item (s)

A
B
MS_CAN_L
CAN related module
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
•  Related wiring harness
C
GND
Body ground
Under any condition
1.0 or less
•  Related wiring harness
D
MS_CAN_H
CAN related module
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
•  Related wiring harness
E
Sensor GND
•  Air mix actuator
•  Airflow mode actuator
•  Evaporator temperature sensor
Under any condition
1.0 or less
•  Related wiring harness
•  Climate control unit: terminal voltage (G)
F
G
Potentiometer input
Air mix actuator
Set temperature at MAX HOT
4.3 or more
•  Related wiring harness
•  Air mix actuator
•  Climate control unit: terminal voltage (G)
Set temperature at MAX COLD
1.0 or less
H
+5V
•  Air mix actuator
•  Airflow mode actuator
Under any condition
5
•  Related wiring harness
•  Air mix actuator
•  Airflow mode actuator
•  Climate control unit: terminal voltage (K)
I
Potentiometer input
Airflow mode actuator
VENT
4.3 or more
•  Related wiring harness
•  Airflow mode actuator
•  Climate control unit: terminal voltage (G)
BI-LEVEL
3.4
HEAT
2.5
HEAT/DEF
1.6
DEFROSTER
0.7 or less
J
Evaporator temperature sensor input
Evaporator temperature sensor
Compared with temperature detected by evaporator temperature sensor
Refer to graph 1
•  Related wiring harness
•  Evaporator temperature sensor
•  Climate control unit: terminal voltage (G)
K
L
B+
ROOM 15 A fuse
Under any condition
B+
•  Related wiring harness
•  ROOM 15 A fuse
M
N
IG2
Front body control module (FBCM)
Switch the ignition ON (engine off or on)
B+
•  Related wiring harness
•  Front body control module (FBCM)
Switch the ignition off
1.0 or less
O
P
Q
Blower fan speed control
Blower fan controller
•  Related wiring harness
•  Blower fan controller
R
S
Motor operation (RECIRCULATE)
Air intake actuator
Moving towards RECIRCULATE
B+
•  Related wiring harness
•  Air intake actuator
Moving towards FRESH
1.0 or less
T
Motor operation (VENT)
Airflow mode actuator
Moving towards VENT
B+
•  Related wiring harness
•  Airflow mode actuator
Moving towards DEFROSTER
1.0 or less
U
Motor operation (FRESH)
Air intake actuator
Moving towards RECIRCULATE
1.0 or less
•  Related wiring harness
•  Air intake actuator
Moving towards FRESH
B+
V
Motor operation (DEFROSTER)
Airflow mode actuator
Moving towards DEFROSTER
B+
•  Related wiring harness
•  Airflow mode actuator
Moving towards VENT
1.0 or less
W
Motor operation (COLD)
Air mix actuator
Moving towards HOT
1.0 or less
•  Related wiring harness
•  Air mix actuator
Moving towards COLD
B+
X
Motor operation (HOT)
Air mix actuator
Moving towards HOT
B+
•  Related wiring harness
•  Air mix actuator
Moving towards COLD
1.0 or less


Blower Fan Speed Control Signal


Fan stopped

aaxjjw00019786
Climate control unit terminal
•  Q(+)—body ground(-)
Oscilloscope setting
•  5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
•  Switch the ignition ON (engine off or on)


Manual 1st

aaxjjw00019787
Climate control unit terminal
•  Q(+)—body ground(-)
Oscilloscope setting
•  5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
•  Switch the ignition ON (engine off or on)
•  Airflow mode: VENT
•  Air intake mode: RECIRCULATE


Manual 3rd

aaxjjw00019788
Climate control unit terminal
•  Q(+)—body ground(-)
Oscilloscope setting
•  5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
•  Switch the ignition ON (engine off or on)
•  Airflow mode: VENT
•  Air intake mode: RECIRCULATE


Manual 7th

aaxjjw00019789
Climate control unit terminal
•  Q(+)—body ground(-)
Oscilloscope setting
•  5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
•  Switch the ignition ON (engine off or on)
•  Airflow mode: VENT
•  Air intake mode: RECIRCULATE
