SEAT BELT
id081100500100
Outline
• Three-point front seat belts with the following functions for front seat passengers adopted.
-
― ELR (Emergency Locking Retractor: emergency locking mechanism)
― Load limiter
• Three-point seat belts with the following functions for rear seat passengers adopted.
Australian specs.
-
― ELR
― ALR (Automatic Locking Retractor: child-restraint seat locking mechanism) (left and right seats)
Except Australian specs.
-
― ELR

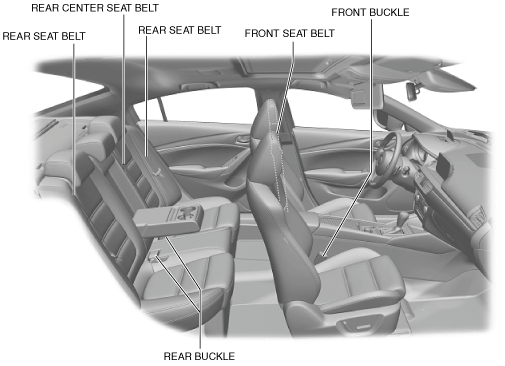

Structural View
Purpose
• The seat belt prevents the driver and the passenger from being thrown from the seat and injured due to an emergency vehicle stop or impact by being hit.
Function
• The seat belts are belt type safety devices which restrain the driver and passengers in their seats.
• The specifications for each seat belt are as indicated in the table.
Australian specs.
|
Seat belt
|
Type
|
Function
|
|
Front seat belt (Driver-side, passenger-side)
|
Three-point
|
• ELR (Emergency Locking Retractor)
• Load limiter
• Pre-tensioner seat belt
|
|
Rear seat belt (RH, LH)
|
Three-point
|
• ELR (Emergency Locking Retractor)
• ALR (Automatic Locking Retractor)
|
|
Rear center seat belt
|
Three-point
|
• ELR (Emergency Locking Retractor)
|
Except Australian specs.
|
Seat belt
|
Type
|
Function
|
|
Front seat belt (Driver-side, passenger-side)
|
Three-point
|
• ELR (Emergency Locking Retractor)
• Load limiter
• Pre-tensioner seat belt
|
|
Rear seat belt (RH, LH)
|
Three-point
|
• ELR (Emergency Locking Retractor))
|
|
Rear center seat belt
|
Three-point
|
• ELR (Emergency Locking Retractor)
|

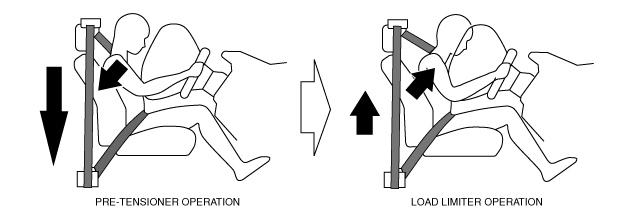

Load limiter
-
• The load limiter adjusts the restraint force of the seat belt by slightly loosening the seat belt tightened by the pre-tensioner operation, preventing injury to the driver and passenger from seat belt pressure.
ELR (Emergency Locking Retractor)
-
• If a sudden force is applied to the seat belt such as by a collision or emergency braking, the ELR locks the seat belt so that it cannot be pulled out any more.
ALR (Automatic Locking Retractor)
-
• When the seat belt is pulled out and fastened, the ALR locks the seat belt at that length and it cannot be pulled out any more.
• The ALR is mainly used for installing a child-restraint.
Pre-tensioner seat belt
-

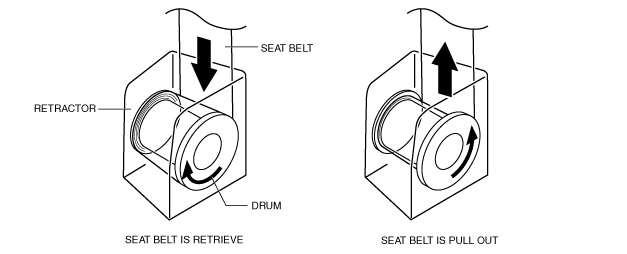

Construction
• For the three-point seat belt, the seat belt is secured to the drum in the retractor and wrapped.
• The seat belt is pulled out or retrieved by the rotation of the drum to adjust the length of the seat belt.
Fail-safe
• Function not equipped.
