ON-BOARD DIAGNOSTIC WIRING DIAGRAM [PARKING ASSIST UNIT]

id0902q6200000

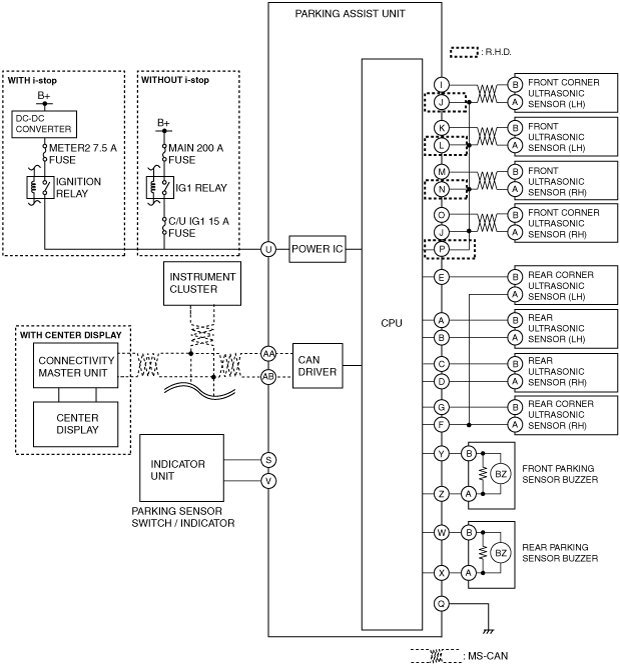

Parking sensor system

am6zzn00003773

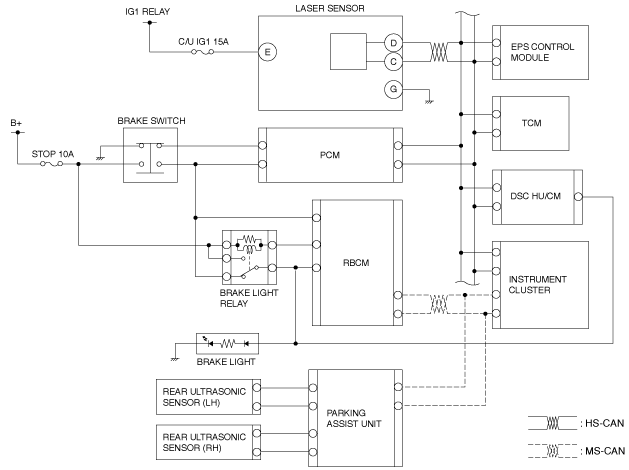

Smart city brake support [Reverse] (SCBS R) (Without smart brake support (SBS))

am6zzn00003279

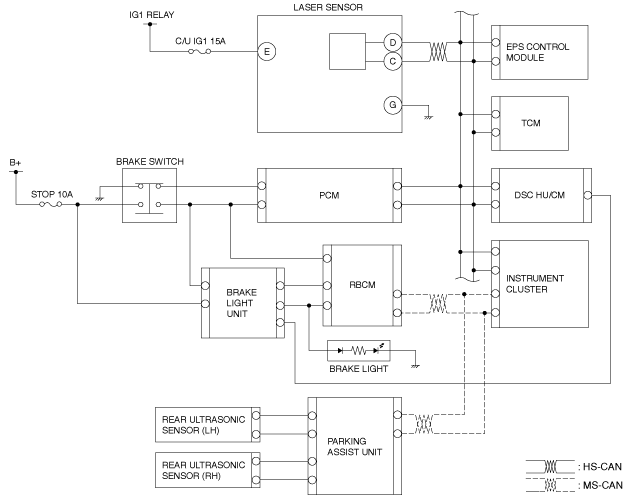

Smart city brake support [Reverse] (SCBS R) (With smart brake support (SBS))

am6zzn00003280
