BONNET
id091000010300
Purpose/Function
• The bonnet structure is designed to absorb impact if the vehicle comes into contact with a pedestrian by assuring a space and using parts which deform.
Construction

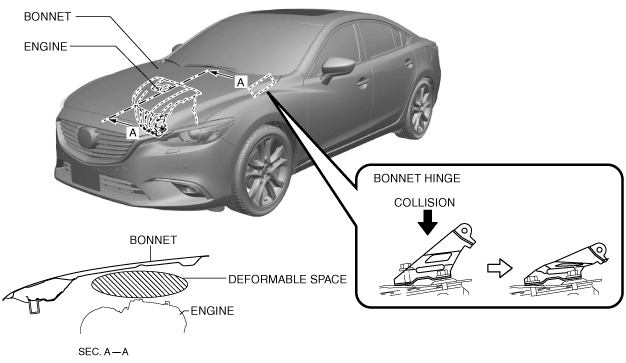

• To absorb impact if the vehicle comes into contact with a pedestrian, the bonnet has a hollow structure in the center area.
• A deformable space is assured between the bonnet and engine.
• If the bonnet receives an impact from above, the bonnet hinges installed to the bonnet collapse to mediate impact if a pedestrian contacts the bonnet.
Fail-safe
• Function not equipped.
