FUEL-FILLER LID REMOVAL/INSTALLATION

id091000800100

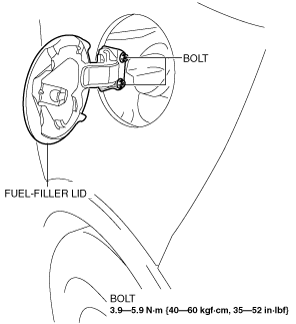

1.  Remove bolts.

am6xuw00007478

2.  Remove the fuel-filler lid.

3.  Install in the reverse order of removal.

4.  Adjust the fuel-filler lid. (See FUEL-FILLER LID ADJUSTMENT.)
