ENERGY-ABSORBING FOAM REMOVAL/INSTALLATION

id091000889100

Front Energy-absorbing Foam

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

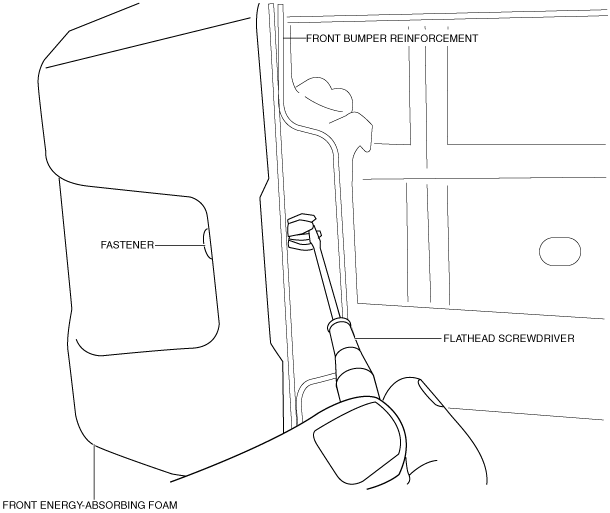

4.  Insert the flathead screwdriver shown in the figure, push fasteners for back side of front bumper reinforcement.

am6xuw00007780

5.  Pull the front energy-absorbing foam in the direction of the arrow shown in the figure while detaching guides

am6xuw00007458

6.  Install in the reverse order of removal.

7.  Adjust the front fog light aiming. (with front fog lights) (See FRONT FOG LIGHT AIMING.)

Rear Energy-absorbing Foam

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION)

(2)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(3)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

3.  Remove fasteners.

am6xuw00007459

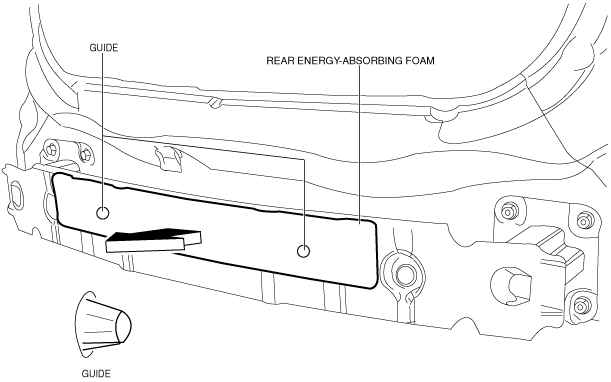

4.  Pull the energy-absorbing foam in the direction of the arrow shown in the figure while detaching guides.

am6xuw00007460

5.  Install in the reverse order of removal.
