REAR DOOR HINGE REMOVAL/INSTALLATION
id091100520800
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)
2. Remove the following parts:

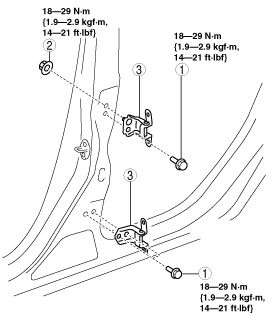

3. Remove in the order shown in the figure.
ac5uuw00000859
|
1
|
Bolt
|
2
|
Nut
|
3
|
Rear door hinge
|
4. Install in the reverse order of removal.
